JL 150
Electric mobile crane
lifting capacity up to 150 kg

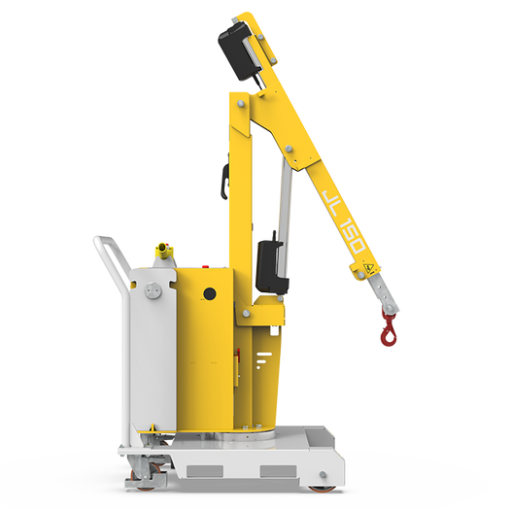

The Just Lift JL150 electric mobile crane is the most compact and ergonomic on the market. Created to facilitate the lifting and movement of light weights of any type up to 150 kg, thanks to its small size it can be used in narrow aisles and tight spaces. One of its main strengths is the steel turntable ball bearing which makes the 360° rotary movement really fluid and light. The Just Lift JL150 crane is designed to speed up and optimize all operations related to lifting and logistics, increasing productivity while guaranteeing maximum safety and ergonomics for the operator.
-
Manual push driving
-
Arm movements controlled by wired control
-
Electric lifting and extension
-
Anti-tipping system as standard
-
100% electric
360° range of action
The Just Lift JL150 counterbalanced crane has a turntable ball bearing which makes the 360° rotative movement fluid and light.
Lifting capacity in the various steps of the arm extension
JL150 counterbalanced crane by Just Lift has a lifting capacity of 150 kg in the first step, 100 kg in the second step and 50 kg in the third (the third step is an additional extension to be added manually). These data are intended on flat ground (0% slope), with the arm parallel to the floor.
Chains
Just Lift offers certified lifting chains. The maximum length is 1.5 m, adjustable thanks to the practical shorteners. They are available with 2 and 4 arms with GKN or BKG end hooks according to your needs.
Extension
On all models it is possible to equip an additional extension to the arm to reach further.
Specifications
JL150
CE
150 kg
Manual push
Battery
Mechanic
341 kg
396 kg
1132 mm
780 mm
1065 mm
2070 mm
1050 mm
