Compact Power for Safe, Efficient Lifting – JL250 Hydraulic Mini-Crane

When it comes to modern material handling, businesses demand equipment that combines strength, precision, and safety in a compact design. The Just Lift JL250 Hydraulic Mini-Crane is purpose-built to meet these needs. With a maximum lifting capacity of 250 kg, a versatile 270° rotation system, and an ergonomic structure, it is one of the most reliable counterbalance floor cranes on the market.

Designed for warehouses, workshops, logistics hubs, assembly lines, automotive services, and manufacturing facilities, the JL250 Hydraulic Mini-Crane offers the perfect balance of power, maneuverability, and safety. Whether you’re lifting machine parts, handling heavy components, or streamlining repetitive logistics tasks, this mini-crane delivers the flexibility to work in both wide-open spaces and narrow aisles where traditional lifting solutions may not fit.

Compact, Ergonomic, and Powerful

The JL250 Hydraulic Mini-Crane is engineered with operator convenience in mind. Its compact dimensions (1840 mm length and 780 mm width) allow it to maneuver effortlessly even in confined aisles, while the hydraulic folding system ensures that lifting and handling operations are smooth, safe, and controlled.

One of its standout features is the steel turntable ball bearing, enabling a fluid 270° rotation. Operators can lock the crane in 45° intervals, giving them exceptional flexibility to position and lift loads precisely without unnecessary repositioning of the entire unit. This design enhances workflow efficiency while reducing operator fatigue.

Hydraulic Precision with Electric Tiller Driving

Unlike conventional manual lifters, the JL250 Hydraulic Mini-Crane is fitted with an electric tiller driving system, allowing operators to maneuver the crane with ease and minimal effort. The hydraulic lifting mechanism combined with arm movements controlled by wired control ensures that loads are lifted and positioned with accuracy, even in challenging work environments.

The hydraulic design also includes an anti-tipping system as standard, guaranteeing stability and safety during lifting operations. This makes the JL250 Hydraulic Mini-Crane particularly valuable in industries where strict compliance with safety standards is essential.

Lifting Capacities and Extensions

The JL250 isn’t just powerful—it’s adaptable. Depending on the extension step of the arm, the lifting capacities are as follows:

• 250 kg – First step (maximum rated capacity)

• 160 kg – Second step

• 130 kg – Third step (manual additional extension)

This flexibility makes the JL250 suitable for handling a variety of loads, from smaller machine parts to medium-sized industrial components.

Additionally, optional extensions can be fitted to extend the crane’s reach, making it even more versatile for jobs that require additional lifting range.

Certified Chains for Versatile Handling

To further optimize lifting operations, Just Lift offers certified lifting chains compatible with the JL250 Hydraulic Mini-Crane. These chains are adjustable up to 1.5 m in length and come in both 2-arm and 4-arm options. Operators can choose GKN or BKG end hooks, depending on the specific load type and handling requirements.

This flexibility ensures that the JL250 can adapt to a wide variety of applications across industries.

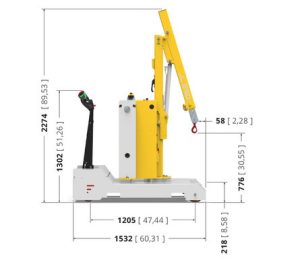

Technical Specifications – JL250 Hydraulic Mini-Crane

• Model name: JL250

• Certification: CE Certified

• Maximum lifting capacity: 250 kg

• Driving type: Electric tiller

• Power supply: Battery-powered

• Parking brake: Mechanical

• Weight (without batteries): 610 kg

• Weight (with batteries): 680 kg

• Length: 1840 mm

• Width: 780 mm

• Height of driving controls: 1217 mm

• Total height: 2310 mm

• Steering diameter: 1050 mm

Safety First: Anti-Tipping and Ergonomic Controls

Operator safety is a core design principle of the JL250. The anti-tipping system, combined with wired control for precise arm movement, minimizes risks during lifting and ensures compliance with workplace safety standards.

The ergonomic layout of the controls, positioned at a comfortable 1217 mm height, allows operators to work for longer periods without strain. By prioritizing operator comfort and safety, the JL250 Hydraulic Mini-Crane not only protects workers but also improves productivity by reducing downtime.

Industries that Benefit from the JL250 Hydraulic Mini-Crane

The JL250 Hydraulic Mini-Crane is designed for maximum versatility, making it an asset across multiple industries, including:

1. Warehousing and Logistics

Ideal for lifting pallets, boxes, and small machinery in confined aisles, the JL250 enhances workflow efficiency without requiring large forklifts.

2. Manufacturing

Perfect for assembly lines and production facilities where frequent lifting and repositioning of components is required.

3. Automotive Workshops

A valuable solution for lifting engines, transmissions, and heavy automotive parts safely without manual strain.

4. Aerospace and Aviation

Used for handling delicate yet heavy components, ensuring precise placement during assembly and maintenance.

5. Construction and Maintenance

Useful for lifting tools, parts, and materials in small job sites or during maintenance tasks where space is limited.

6. Metal and Engineering Industries

Supports the movement of fabricated components, molds, and parts within workshops, boosting operational safety and efficiency.

Why Choose the JL250 Hydraulic Mini-Crane?

• Compact yet powerful – fits into tight aisles while lifting up to 250 kg

• Safe and ergonomic – anti-tipping system, wired controls, and operator-friendly design

• Flexible – 270° rotation with multiple locking points

• Efficient – electric tiller drive for smooth maneuverability

• Certified – CE compliance ensures reliability and workplace safety

Conclusion

The Just Lift JL250 Hydraulic Mini-Crane is more than just a lifting device—it’s a productivity booster for modern workplaces. Compact, versatile, and safe, it offers a reliable solution for lifting and handling light to medium loads up to 250 kg across industries.

By combining hydraulic power, ergonomic design, and safety-focused engineering, the JL250 enables businesses to reduce manual handling risks, improve efficiency, and maximize operational output.

For industries ranging from warehousing to manufacturing, automotive to aerospace, the JL250 Hydraulic Mini-Crane is an indispensable addition to any workplace committed to safe, efficient, and compliant lifting operations. Contact us now.
