Simplicity Plus bin lifter

150 kg lift capacity

The Simplicity Plus is a portable push-button bin lifter that aids in the safe lifting and emptying of wheelie bins into skip bins.

Usage frequency: Ideal for regular frequent tipping.

Typical applications: Suitable for functions, event centres, schools, festivals and worksites.

Capacity	150 kg
Highest Tip Point	2800 mm
Bin Volume	80, 120, 140, 240 L

Add to quote

Categories: Bin Lifters/Tippers, Lifters & Stackers

Brands: Electrodrive, Liftmaster

Brand: Electrodrive, Liftmaster

Description
Additional information

Liftmaster Simplicity Plus bin lifter and tipper

The Liftmaster Simplicity Plus Bin Lifter and Tipper is a portable push-button unit that aids in the lifting and emptying of wheelie bins into skip bins.

The Simplicity Plus is the ideal unit for medium weight and frequent lifts. The push button operation eliminates all of the manual handling and associated risk. Designed to lift up to 150 kg at a time, the Simplicity Plus is ideal for up to 100 lifts per day.

A simple process of pushing the button to lift and empty the wheelie bin in a 35 second cycle. It operates on a 12V rechargeable battery which ensures the unit is completely portable.

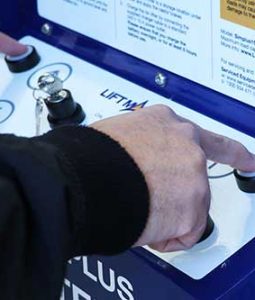

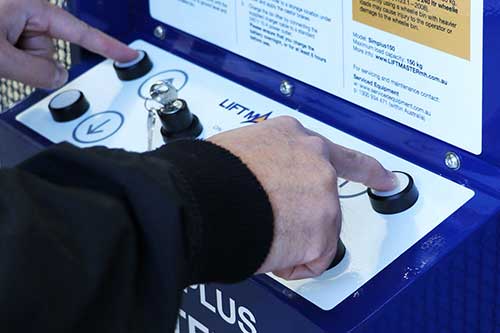

The push-button control panel on the Simplicity Plus bin lifter and tipper

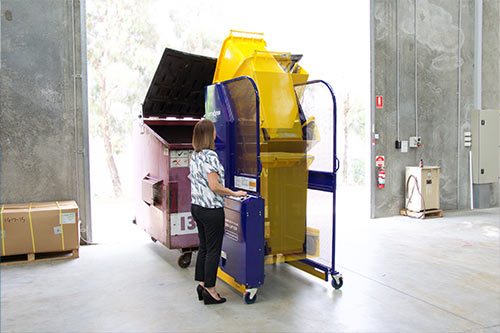

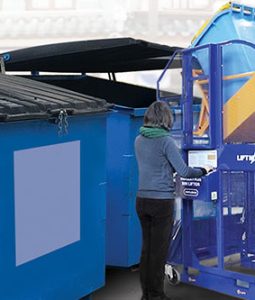

The Simplicity Plus has a lift-and-tilt motion

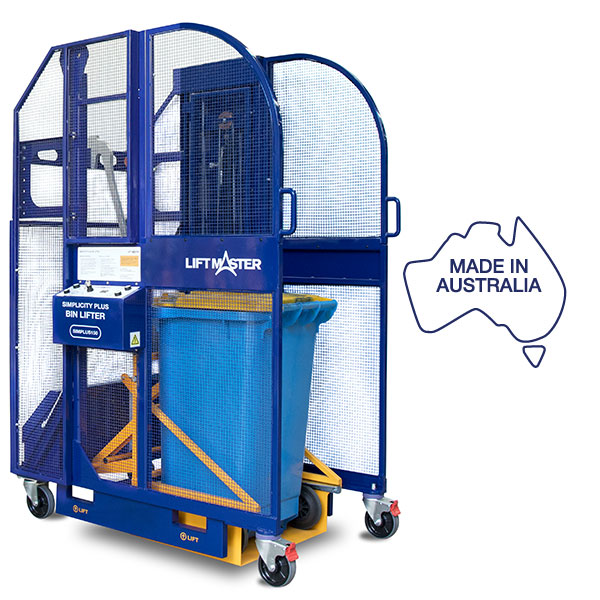

The Simplicity Plus bin lifter and tipper

Simplicity operating manual (PDF) Download the brochure

Typical applications

Suitable for factories, warehouses, storage facilities, apartment blocks, waste management companies, schools, event organisers.

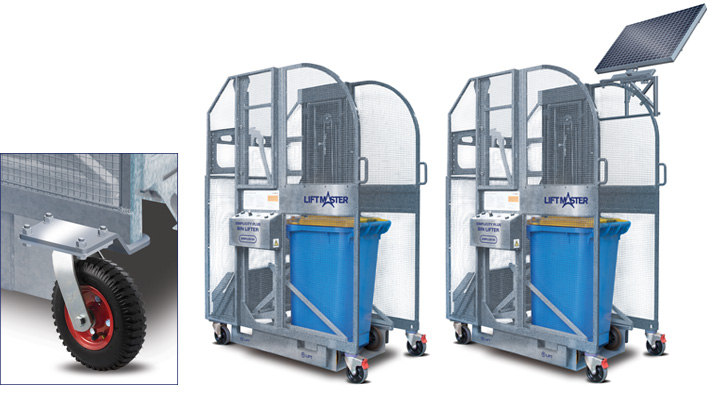

Upgrade to ‘All terrain’, galvanised or solar powered models

All Terrain bin lifters: Fitted with tough pneumatic wheels for applications involving rough and uneven ground.
Galvanised bin lifters:Finished in galvanised for optimal outdoor weather resistance.
Solar powered retrofittable kits:Ideal for outdoor, remote or off-grid use. solar powered kits.

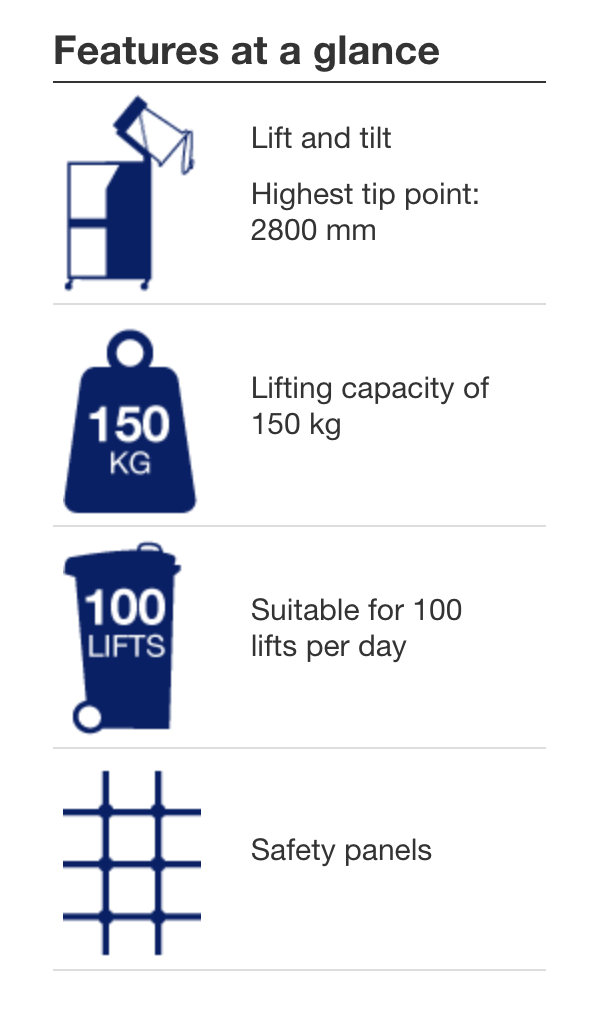

Features and specifications

Order codes	Standard: SIMPLUS150HY1500 (for 1500 mm skip bins) SIMPLUS150HY1800 (for 1800 mm skip bins) Upgrades: SIMPLUS150AT1500 (‘All terrain’ model with pneumatic wheels for 1500 mm skip bins) SIMPLUS150AT1800 (‘All terrain’ model with pneumatic wheels for 1800 mm skip bins) SIMPLUSHYD1500G (Galvanised model for 1500 mm skip bins) SIMPLUSHYD1800G (Galvanised model for 1800 mm skip bins) SIMPLUSAT1500G (Galvanised model with All Terrain pneumatic wheels for 1500 mm skip bins) SIMPLUSAT1800G (Galvanised model with All Terrain pneumatic wheels for 1800 mm skip bins) SPSOLARUBLSIMPG (Solar powered kit)
Lifting capacity	150 kg
Lifting mechanism	Lift-and-tilt
Recommended lifts (per day)	100
Bin compatibility	Wheelie bin: 80, 120, 140 and 240 litre Skip bin: 1500 and 1800 mm
Operation	Method: Push-button hydraulic system. Time: 35 seconds.
Battery	12V rechargeable battery and smart charger 10A main outlet
Highest tip point	2800 mm
Country of origin	Made in Australia.
Safety features	Safety cage to eliminate hand and foot crush-points for operators and bystanders. Braking castors for stability.
Certifications	CE Certificate.
Warranty	3-year warranty.
Service	Training and servicing programs are available. Download our Preventative Maintenance Plans for more information.
Dimensions (L/W/H)	1500/980/2200 mm
