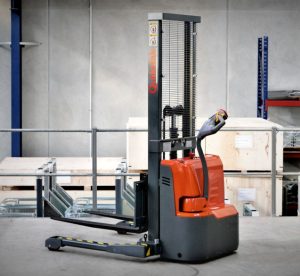

Quikstak SP10 Self Drive 1000kg Auto Pallet Stacker – Compact Power for Modern Warehouses

Efficient material handling is the backbone of any modern warehouse, distribution centre, or manufacturing facility. When space is tight, loads are heavy, and productivity is key, having the right equipment can make all the difference. The Quikstak SP10 Self Drive 1000kg Auto Pallet Stacker is engineered to meet these challenges, offering unmatched manoeuvrability, safety, and ergonomic operation. Specifically optimised for Australasian workplaces, the SP10 is a compact yet powerful solution for warehouses, logistics operations, and industrial sites.

Compact Design, Maximum Efficiency

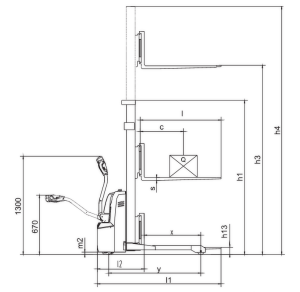

One of the standout features of the Quikstak SP10 is its incredibly compact design. With a minimum width of just 1132mm and a tight 1490mm turning radius, this self-drive pallet stacker can navigate narrow aisles and crowded warehouse layouts with ease. Whether you’re working in a retail stockroom, a high-density warehouse, or a production facility with tight passageways, the SP10 allows operators to move materials quickly without compromising safety.

Despite its small footprint, the SP10 offers a substantial lift capacity of 1000kg, easily handling pallets, crates, and other industrial loads. The standard lift height is 1600mm, but for applications requiring greater reach, optional lift heights are available up to 3000mm. This flexibility ensures that operators can efficiently stack and destack materials at multiple levels, optimising vertical storage and reducing floor congestion.

MAGIC-EYE Technology – Ergonomic Stacking Made Easy

A key differentiator for the Quikstak SP10 is Simpro’s proprietary MAGIC-EYE infrared sensor system. Since 1994, MAGIC-EYE technology has set the benchmark for ergonomic pallet handling. This innovative system automatically adjusts the fork height to maintain a comfortable working level as materials are stacked or destacked. By reducing repetitive bending and lifting, MAGIC-EYE not only enhances productivity but also minimises operator fatigue and reduces the risk of injury.

In applications such as retail distribution centres or food and beverage warehouses—where repetitive stacking is a daily activity—the ergonomic benefits of MAGIC-EYE are significant. Operators can handle multiple pallets safely in a single shift, improving throughput while maintaining compliance with health and safety standards.

Versatile Applications Across Industries

The Quikstak SP10 1000kg pallet stacker is ideal for a wide range of material handling applications:

• Warehousing & Distribution: Stack and retrieve pallets efficiently in narrow aisles, maximising storage density and streamlining order fulfilment.

• Retail Stockrooms: Navigate tight back-of-store areas while lifting heavy stock, reducing downtime and physical strain on staff.

• Manufacturing Facilities: Transport components or finished goods between production lines with precision, thanks to its compact design and smooth handling.

• Food & Beverage Industry: Move pallets of packaged goods, beverages, and ingredients safely while complying with hygiene standards, as the SP10’s electric operation reduces emissions indoors.

• Pharmaceutical & Medical Supply: Lift sensitive or heavy equipment with minimal handling, ensuring accuracy and safety in controlled environments.

With optional upgrades like increased lift heights to 2500mm or 3000mm, custom outrigger and fork configurations, and uprated battery capacity, the SP10 can be tailored to virtually any operational requirement.

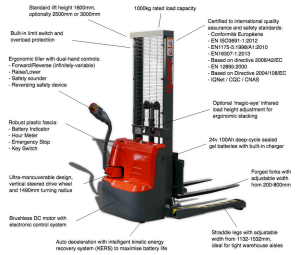

Advanced S-Series Technology

The SP10 incorporates a range of features from Simpro’s S-Series technology, enhancing reliability and operator experience:

• Adjustable Forks & Straddle Legs: Adapt to different pallet sizes and load configurations quickly.

• Brushless Motor: Ensures quiet, low-maintenance operation, ideal for noise-sensitive environments.

• Ergonomic Tiller with Handle-Mounted Controls: Simplifies navigation and handling, allowing precise control during loading and unloading operations.

• Compact Footprint: Allows the stacker to operate in confined spaces without sacrificing lifting power.

These innovations make the Quikstak SP10 a top choice for facilities where space optimisation, operator comfort, and operational efficiency are priorities.

Safety & Compliance

Safety is central to the SP10’s design. Manufactured in an ISO 9000 certified plant, the stacker meets a broad range of international quality and safety standards. From the robust structural design to the integrated ergonomic controls, every feature has been tested to ensure secure operation. The SP10 is suitable for both novice and experienced operators, making it a reliable asset across diverse material handling environments.

Additionally, MAGIC-EYE technology provides an extra layer of operational safety by preventing overextension and ensuring the forks remain at an ergonomically safe height. This is particularly beneficial in fast-paced warehouses where operators frequently stack or destack pallets at varying heights.

Customisation Options

Every operation has unique requirements, and Simpro offers extensive customisation options for the Quikstak SP10:

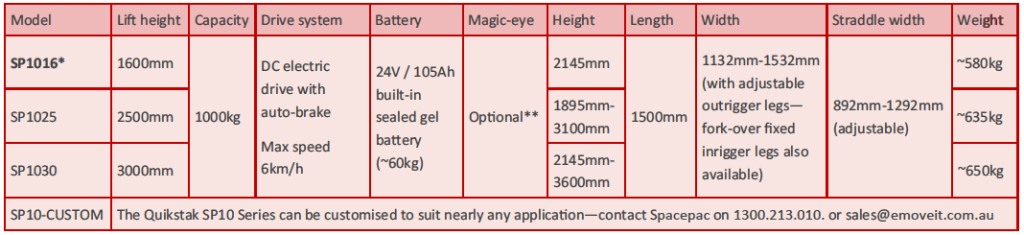

• Lift Height Variations: Choose from 1600mm, 2500mm, or 3000mm depending on storage requirements.

• Fork & Outrigger Configurations: Tailor the stacker for specific load types or warehouse layouts, including ‘fork-over’ options for specialised pallets.

• Uprated Battery Capacity: Extend operation time for high-throughput environments.

• Custom Engineering: Simpro’s team can develop bespoke solutions to meet specialised industrial applications.

These options make the SP10 a highly versatile tool that can be adapted to maximise productivity and workflow efficiency.

Why the SP10 Stands Out

While there are many pallet stackers on the market, the Quikstak SP10 Self Drive 1000kg Auto Pallet Stacker offers a rare combination of features:

• Compact size with industry-leading manoeuvrability.

• High load capacity and adjustable lift height for versatile handling.

• Ergonomic operation with MAGIC-EYE technology to reduce operator fatigue.

• Reliable brushless motor and S-Series technology for low-maintenance, smooth performance.

• Customisable options for a truly application-specific solution.

• ISO 9000-certified manufacturing and adherence to global safety standards.

For Australasian warehouses, retail operations, and manufacturing facilities seeking a dependable, space-saving, and safe pallet handling solution, the SP10 is an ideal choice.

Conclusion

Efficient, safe, and ergonomic material handling is critical to the success of modern industrial operations. The Quikstak SP10 Self Drive 1000kg Auto Pallet Stacker delivers on all fronts—providing compact manoeuvrability, high lift capacity, and innovative technology like MAGIC-EYE to optimise operator comfort and productivity. With a range of customisation options, it is perfectly suited for warehouses, retail stockrooms, manufacturing facilities, and other industrial applications where space, safety, and efficiency matter.

Investing in the Quikstak SP10 is more than purchasing a pallet stacker; it’s acquiring a reliable, versatile partner that can streamline operations, reduce physical strain on operators, and enhance workflow efficiency across multiple industries. Contact us now.
