Galvanised or powder-coat bin lifters—100 kg capacity
Australian-made bin lifter and tipper
The Liftmaster Rugged—Manual Bin Lifter and Tipper is an Australian-made powder-coated unit, designed for lifting and emptying wheelie bins into skip bins with ease. With manoeuvrability in mind, it has a small footprint, is light weight and has a spark-free manual operation, making it the perfect bin lifter and tipper for building or mining sites.
Its lift mechanism is a full-swing operation, unlike the lift-and-tilt operation of the Ecolift bin lifter. Equipped with a hand-pump lever for a safe and gradual controlled hydraulic lifting action, the Rugged Manual is recommended for up to 10 lifts per person per day.

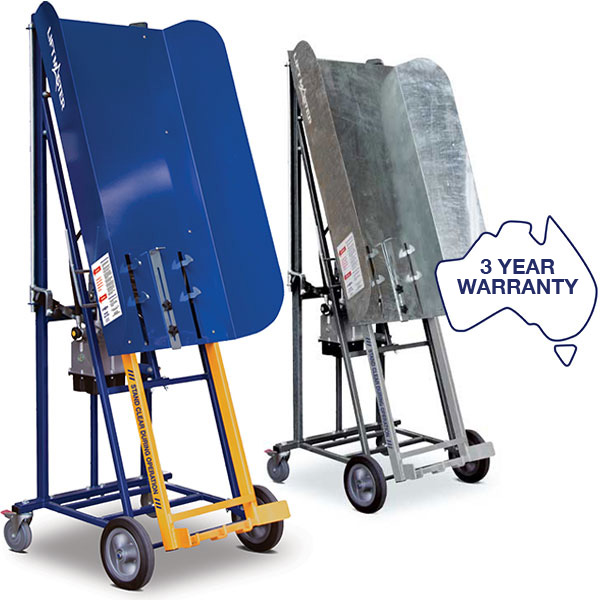

Liftmaster’s Rugged (Manual) bin lifter

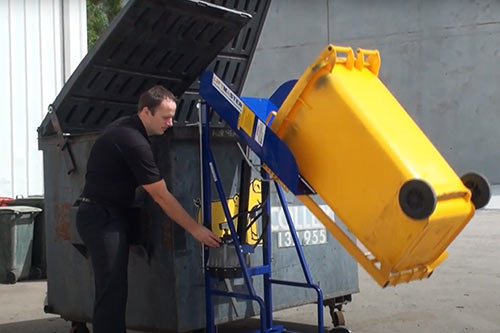

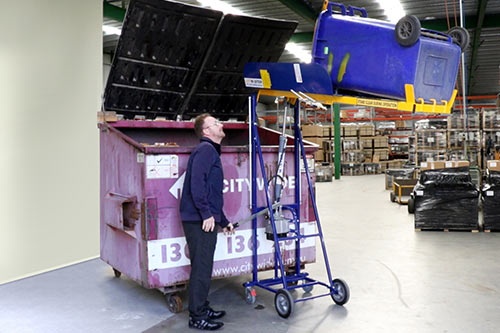

The Rugged (Manual) has a full-swing motion

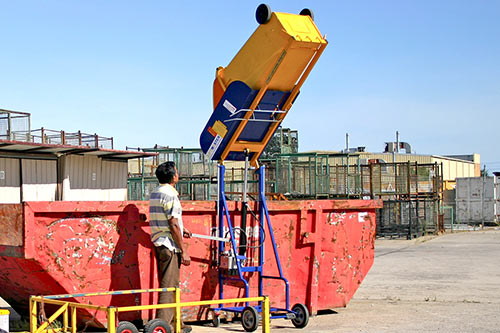

Rugged (Manual) bin lifter outdoors
Upgrade options available

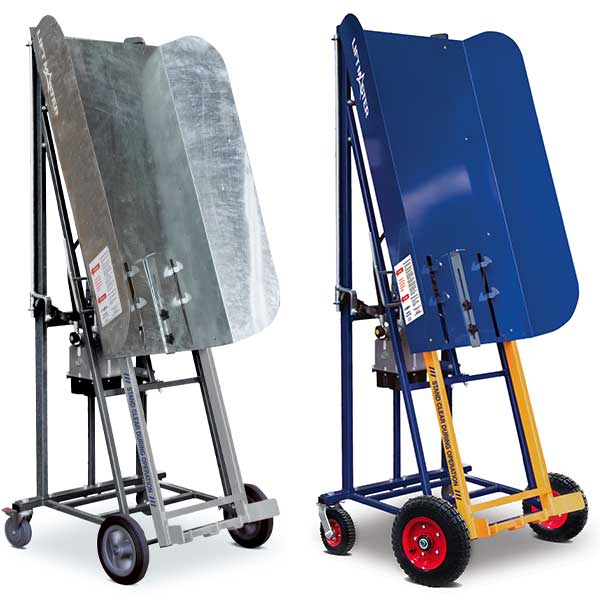

Galvanised bin lifter and tipper
- A fully galvanised bin lifter and tipper model for highly-corrosive areas or permanent outdoor storage. The perfect weather-resistant bin lifter solution for durability and longer life.Perfect for food and beverage manufacturers.
All Terrain bin lifter and tipper
- All Terrain bin lifter and tipper model with thick rubber pneumatic wheels suited for grass, dirt, rubble and uneven surfaces.Perfect for construction sites and mines.
Typical applications
Suitable for construction sites, industrial worksites, mines, factories and spark-free environments.

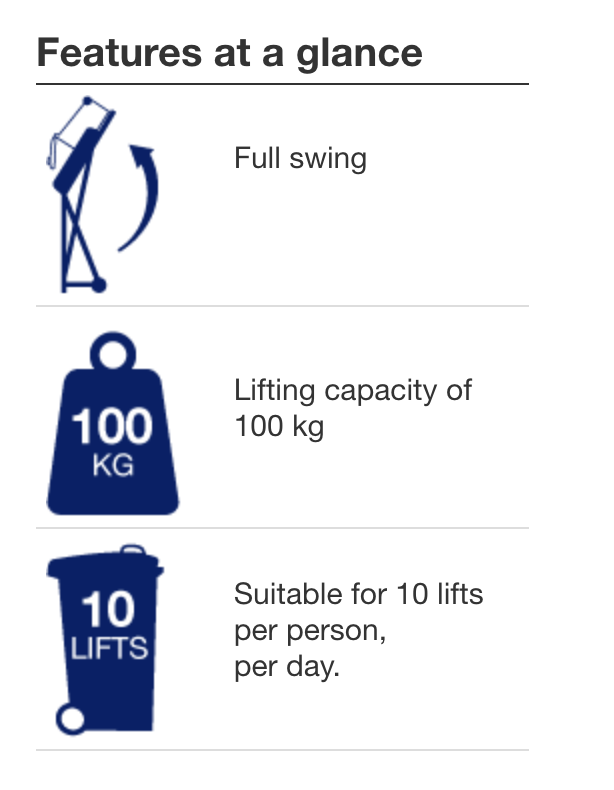

Features and specifications
| Order codes |
|
|---|---|
| Lifting capacity | 100 kg |
| Lifting mechanism | Full swing |
| Recommended lifts (per person per day) | 10 |
| Bin compatibility |
Please note: The BLHP1500 and BLHP1800 bin lifters are not compatible with 660 and 1100 litre plastic dumper bins due to the insufficient weight for holding the bin lifter in place when emptying 240 litre wheelie bins. * Note: You must change the position of the bin catch for 140 litre wheelie bins. |
| Operation | Method: Hydraulic hand-pump.
Time: 45 seconds/28 pumps. |
| Finish | Powder-coated (standard), or galvanised finish available. |
| Fits through internal doorways. | Yes |
| Highest tip point |
|
| Country of origin | Made in Australia. |
| Safety features |
|
| Warranty |
|
| Service | Training and servicing programs are available.
Download our Preventative Maintenance Plans for more information. |
| Dimensions (L/W/H) |
|
Liftmaster’s bin lifter and tipper range
