Model | AW6082H03 | |
Electric system | ||
---|---|---|
System voltage | 48V AC | |
Motor | 5.0 KW AC | |

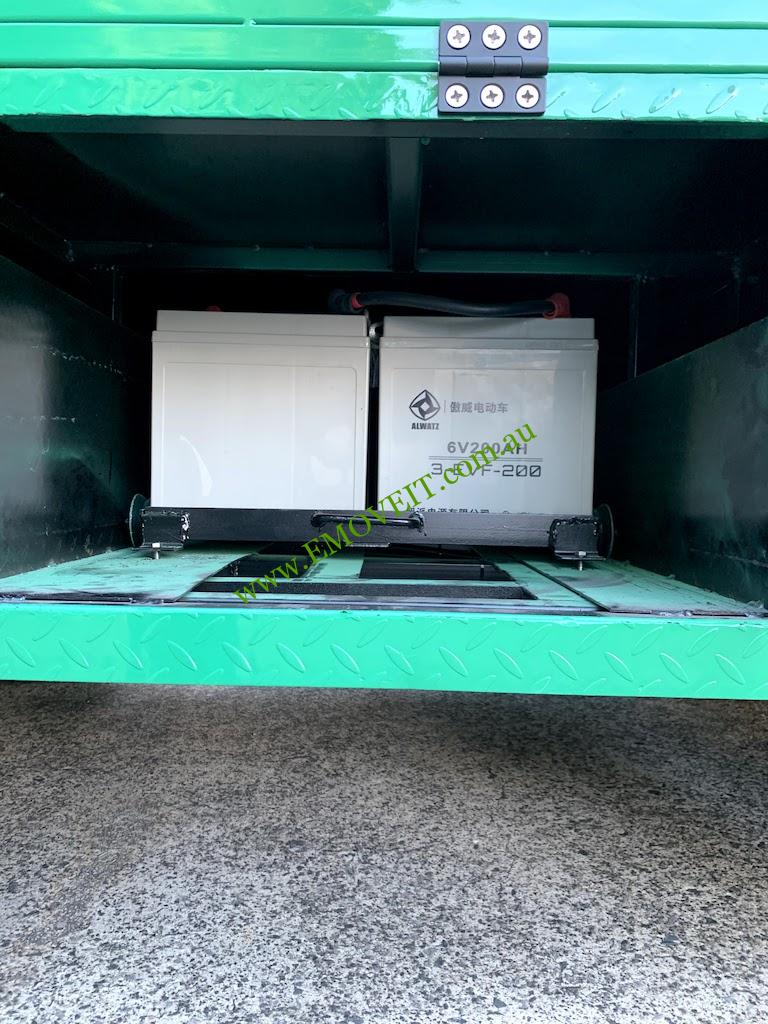

Battery |

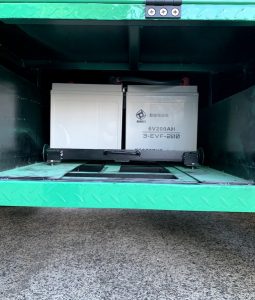

8 X 6V top quality, Maintenance Free, Sealed Batteries (200AH@5hr) |
|
Controller | Curtis |
Technical Specifications | |||
---|---|---|---|
Passenger capacity | 2 Persons | ||
Range | > 70 km (Range per charging – Fully loaded vehicle moving on a flat-level road, at a fixed speed of 20 km/h) | ||
Max. speed | 30 km/h | ||
Minimum turning radius (m) | 4.5m | ||
Max. braking distance | < 4m (at 20km/h) | ||
Max. climbing ability (loaded) | 20% | ||
Max. loading weight | 1000kg |

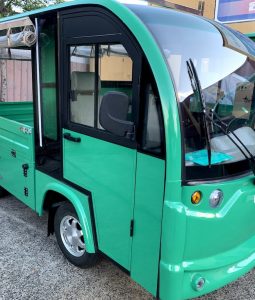

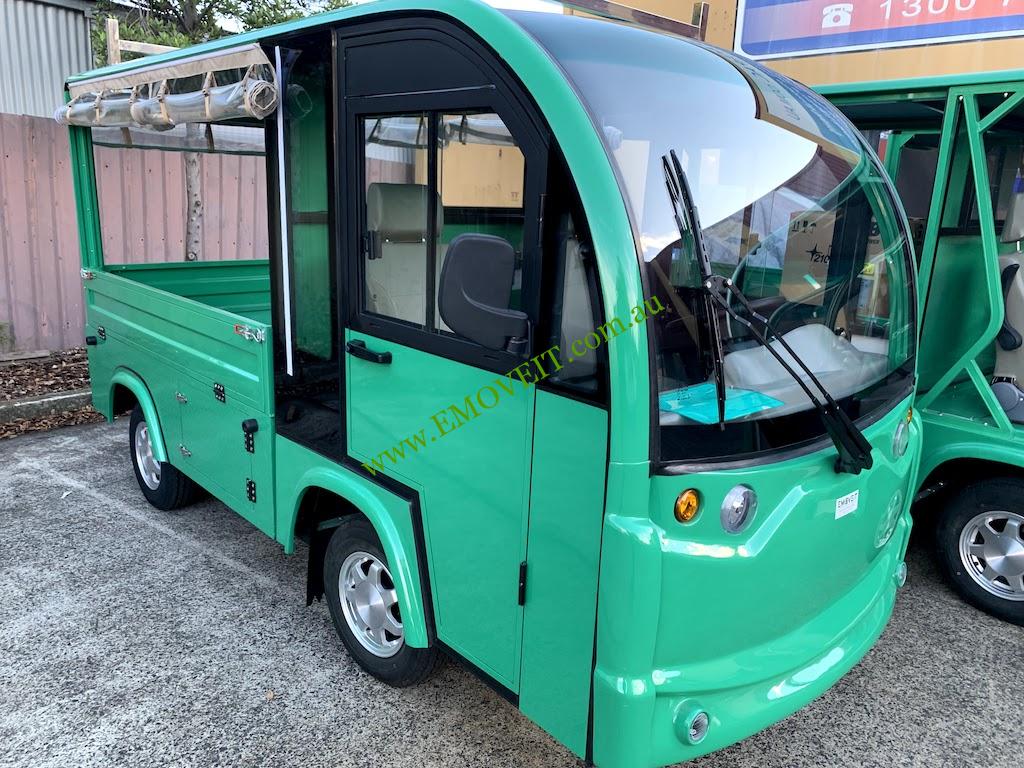

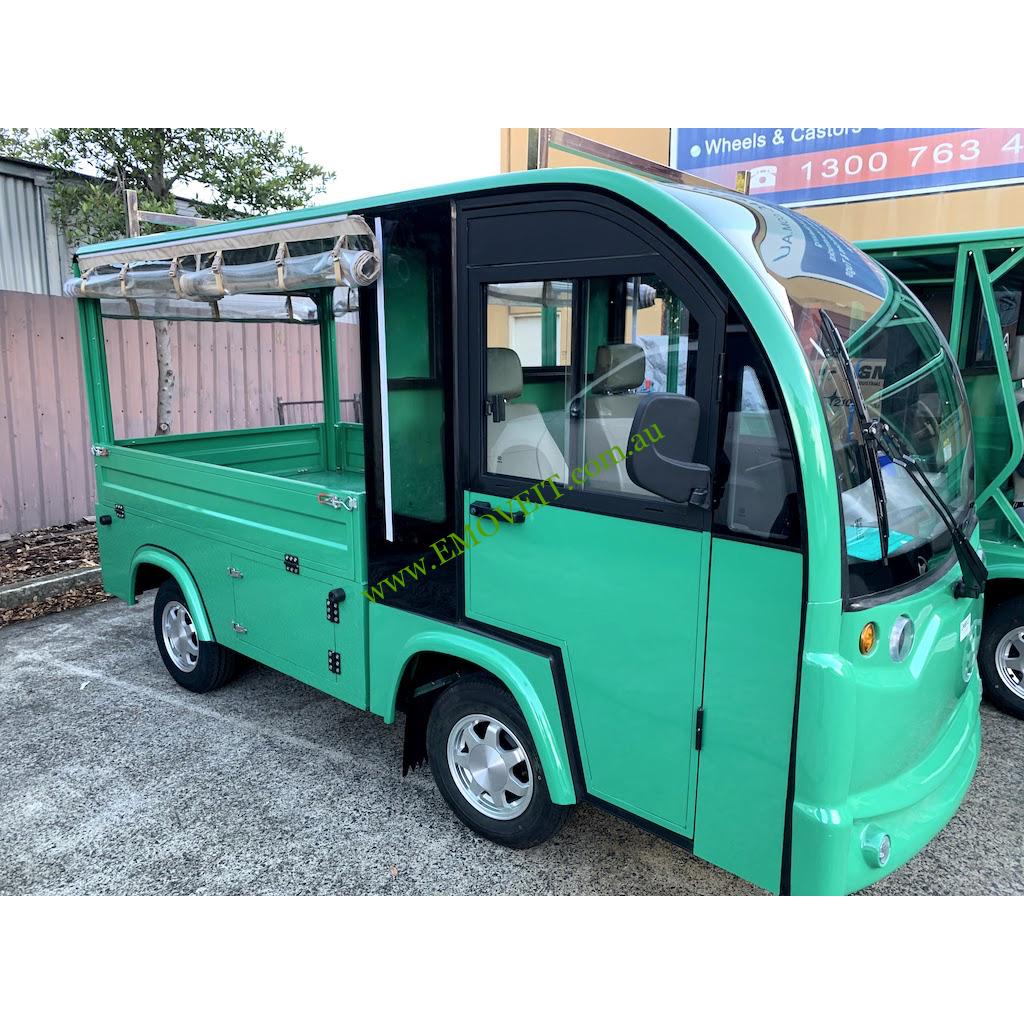

Dimensions for the Green with Canopy Model | |
---|---|
Overall Wide: | 1550mm |
Overall High: | 2200 mm (inc Roof Rack) |
Overall Long: | 3700mm (inc Towbar) |
Tray/Deck (AW6082H03): | 1990 x 1410 Interenal | Tray/Deck (AW6082H3-NBC): | 2150 x 1410 Interanal |
Weight | 1110 kg with batteries |
Other Specifications | ||
---|---|---|

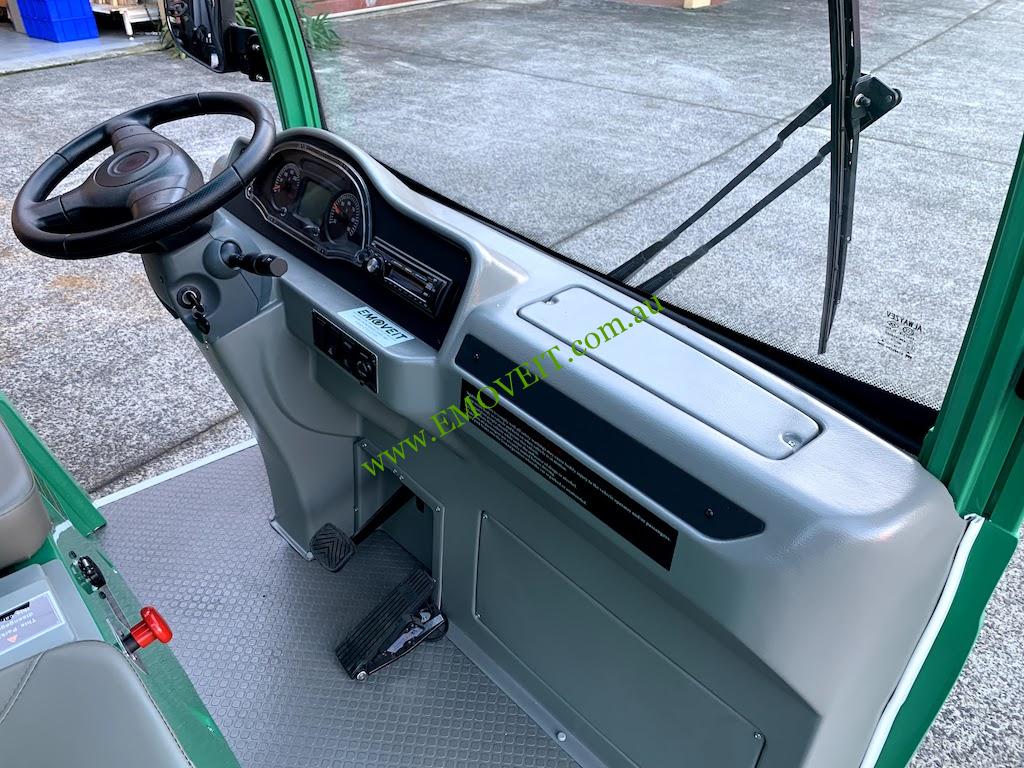

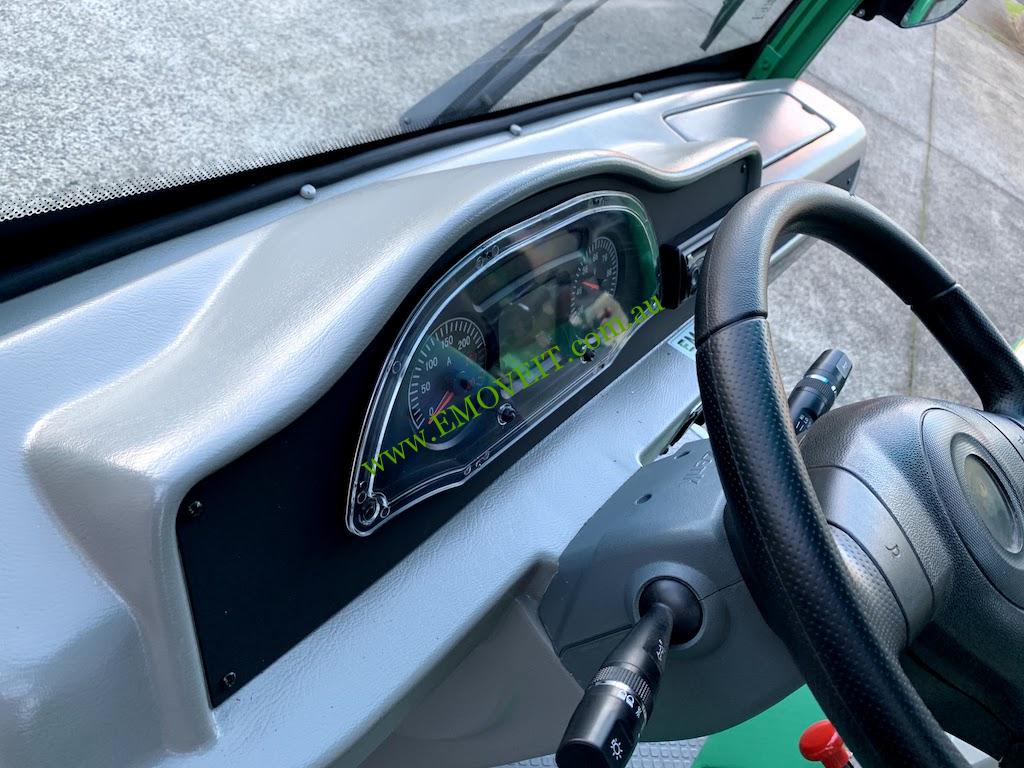

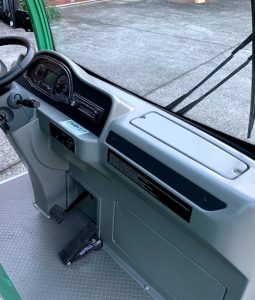

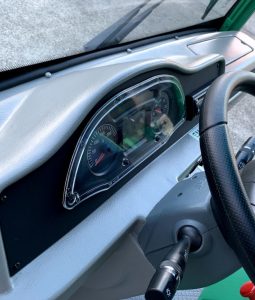

Instruments on dashboard | Combination instrument including power consumption, voltage, current, speed, mileage, time, light, F/R switch, and signal. | |
Rear view mirror | 1pc on each side | |
Lighting system | Headlight, turn lights, taillight, horn and reverse buzzer | |

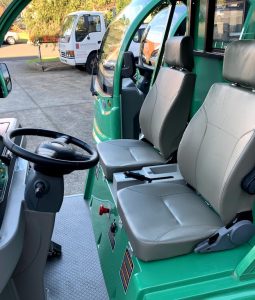

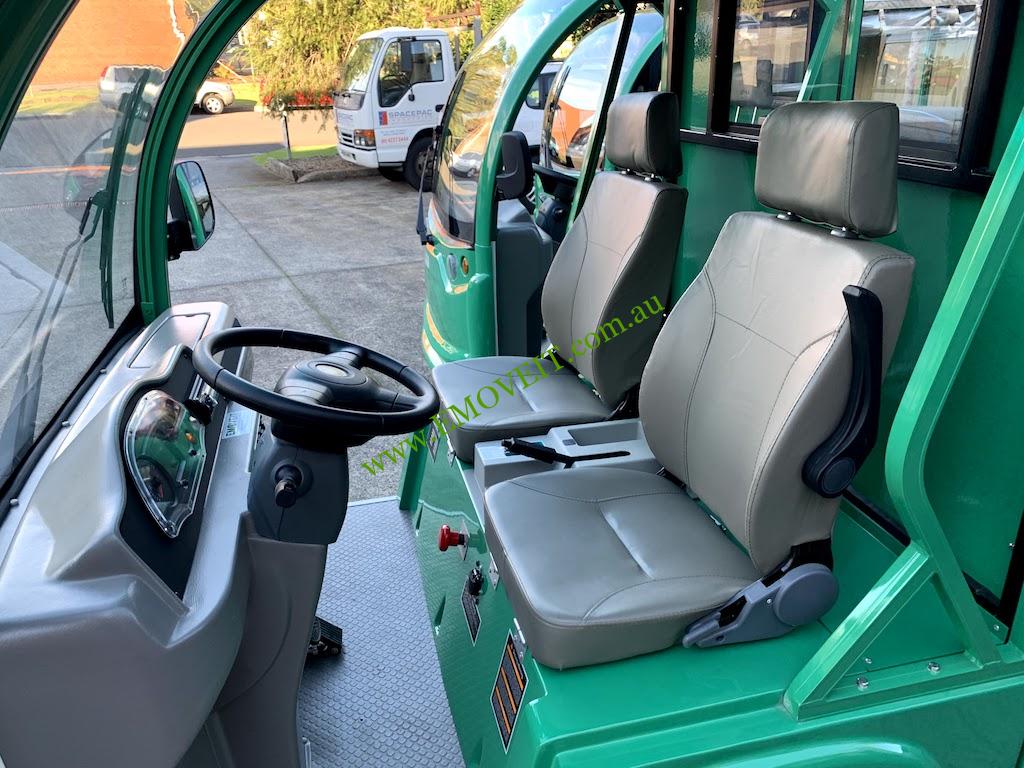

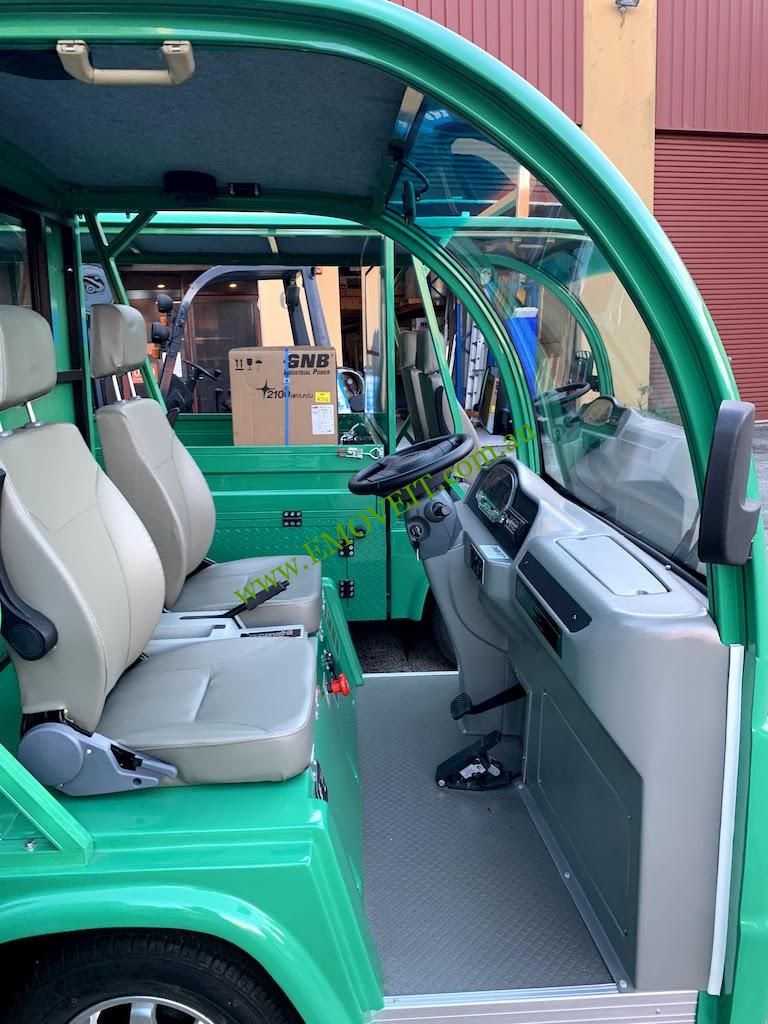

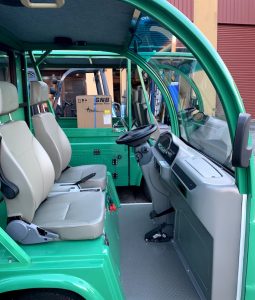

Seats | High quality, artificial leather | |
Audio | CD and Radio, speakers | |
Switch assembly | Combination switch including Power keys (2), Lights and wiper combination switch, F/R switch and reverse buzzer switch | |
Drive Mode | 2 rear wheel drive, motor on rear axle (stepless) | |
Braking System | Frond drum/rear drum, hydraulic brake, parking brake | |
Front axle and suspension | Independent suspension | |
Rear axle and suspension | Integral rear axle, coil spring non-independent suspension, hydraulic shock absorber tube | |
Steering System | Rack and pinion drive | |
Tire | Aluminum wheel, tire 155R12C | |
Body | Steel frame + fiberglass | |

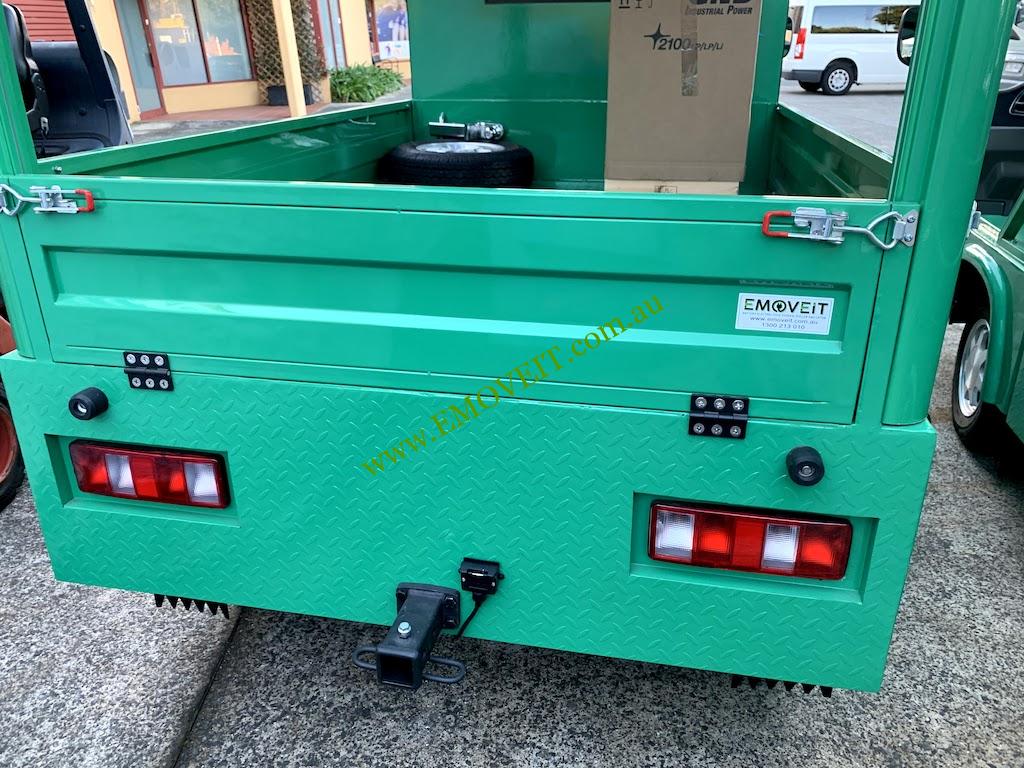

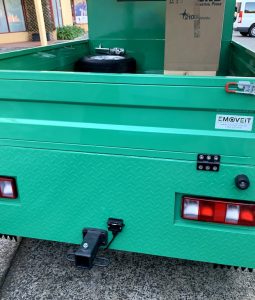

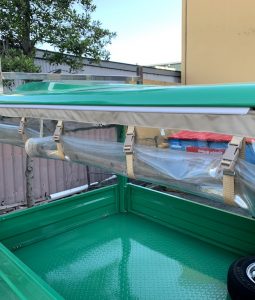

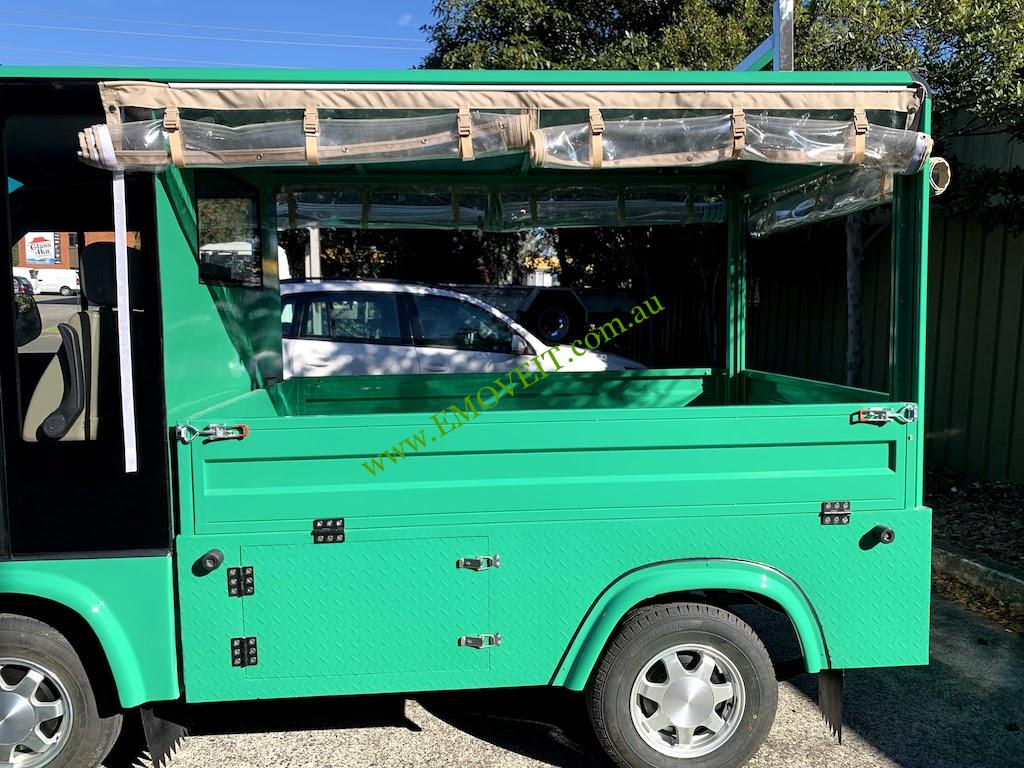

Tray | Flat, reinforced steel deck with removable drop sides | |

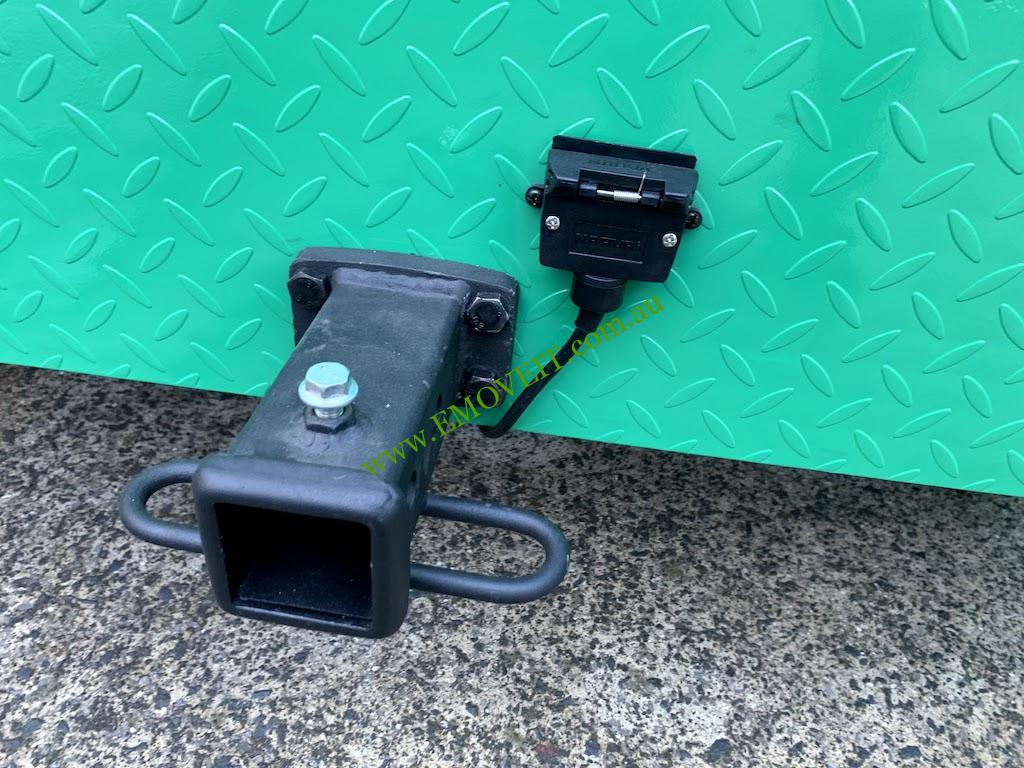

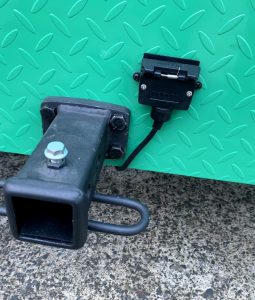

Towing Hitch | Standard 50mm Ball mount ..(or 20mm Pin Hitch) | |
Floor | Non-slip floormat | |

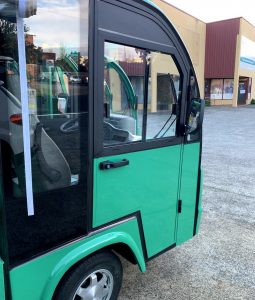

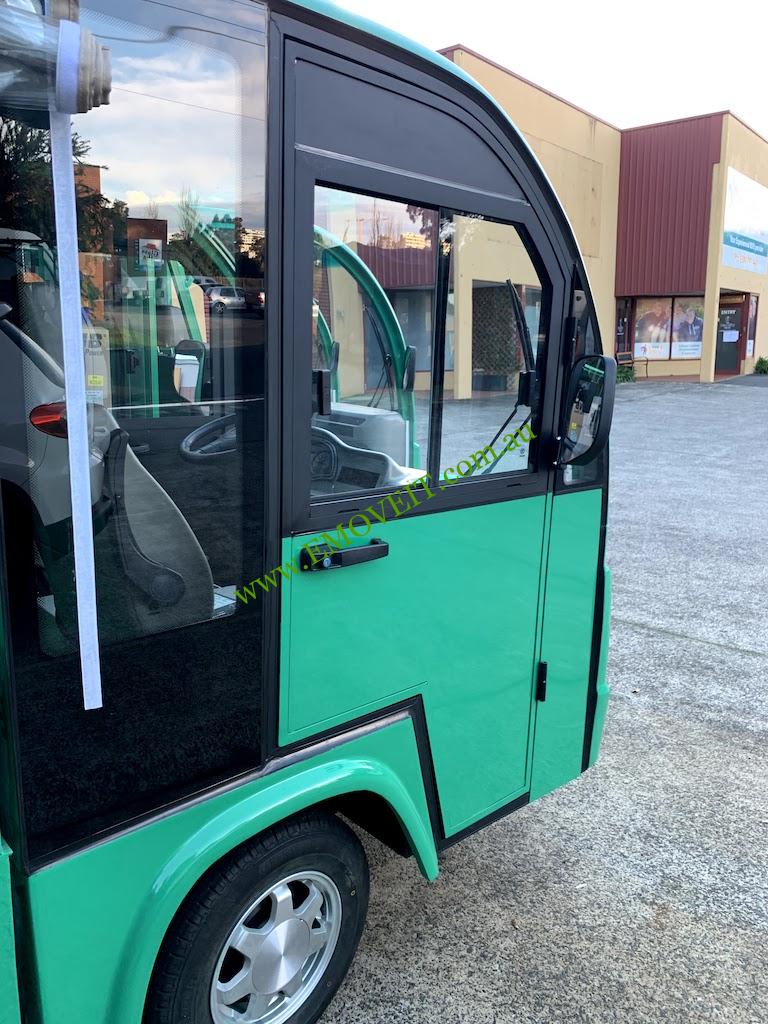

Options | Carry Racks – Deck Mounted, Lithium Batteries, Cabin Doors (Removable), Trailer Wiring kit. |
