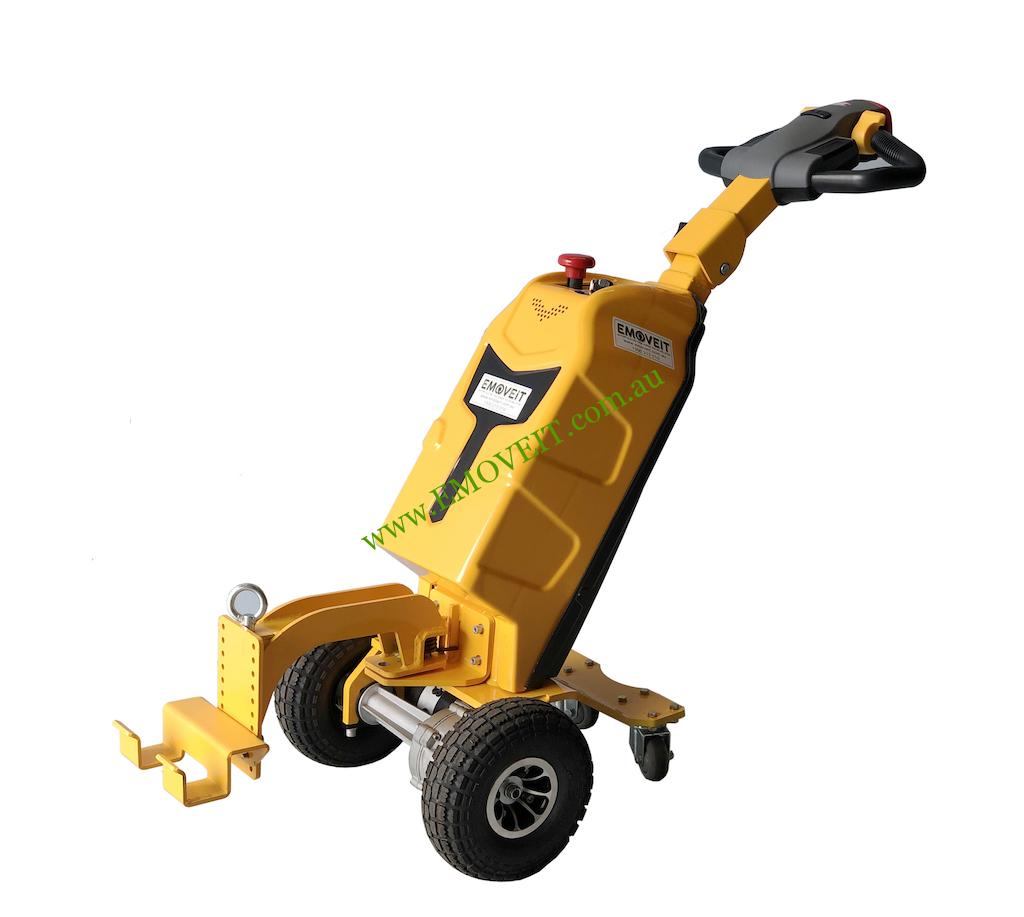

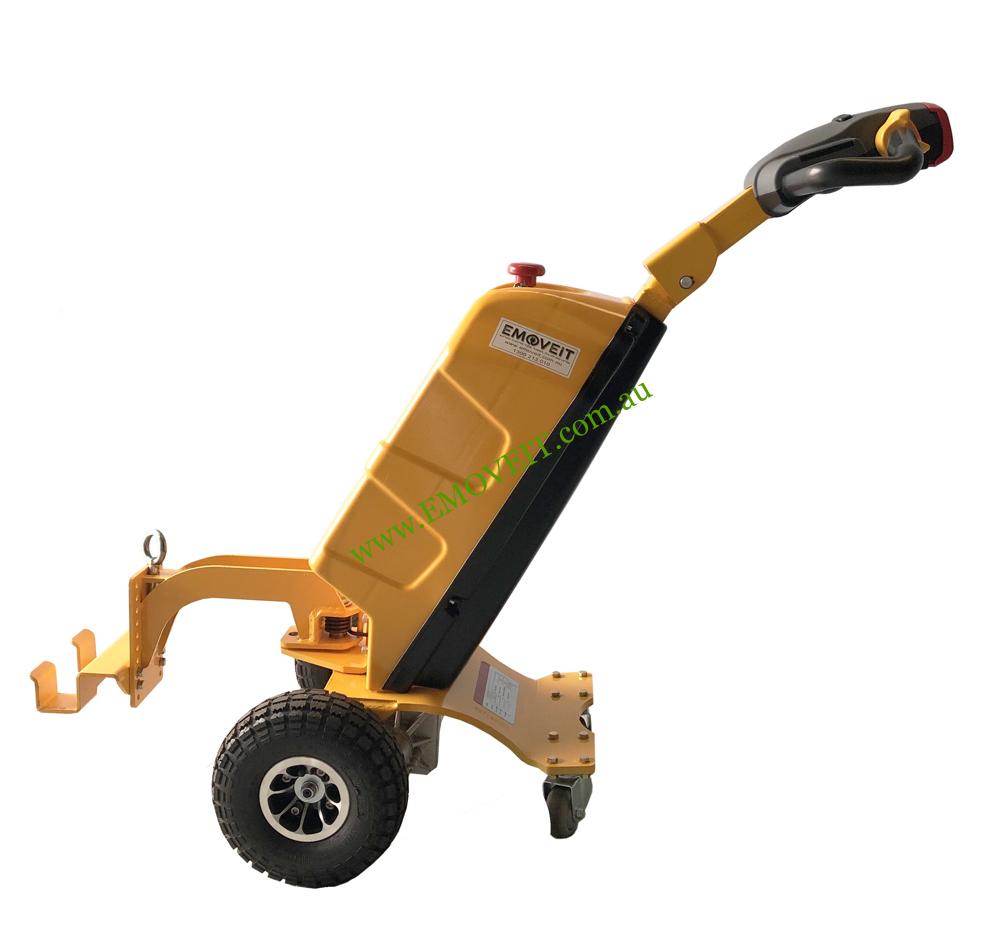

XL Series Pedestrian Tow Tug

Capacity	1500kg (Pull/Push)
Motor	24V

SKU: XL-H1500-TM Category: Pedestrian Tow Tugs Brands:

Compact Design makes it more flexible and easier to operate.
Strong Traction with 1500kg Push or Pull capacity on 3% Slope.
Tractive Drive wheels with a Pneumatic Tyre diameter of 250 mm.
Easy to Charge, with the internal charger, the charging process can be realized where there is a 10amp socket.
Comfortable in operation: the Tiller height is adjustable.

Electric-Engine:Others:

Characteristics:
Part Number	XL-H1500-TM
Drive unit	Battery Electric
Operator type	Pedestrian
Rated capacity [Q]	1500 kg
Rated drawbar Pull [F]	200
Wheelbase [Y]	315 mm
Weights:
Service weight (include battery)	98 kg
Axle loading with load,driving side/loading side	98/0 kg
Axle loading without load,driving side/loading side	78/20 kg
Type; Chassis:
Tyre type driving wheels/loading wheels	Rubber
Tyre size, driving wheels (diameter x width)	2x Ф250×85
Tyre size, loading wheels (diameter x width)	2x Ф75×32
Wheels, number driving/loading (x=drive wheels)	2x/2
Track width, front driving side [b10]	428 mm
Track width, rear driving side [b11]	217 mm
Dimensions:

Standing height [h7]	n/a
Height drawbar in driving position, min./max. [h14]	835~930~1010
Tow coupling height scope [h10]	n/a
Overall Length [i1]	1255~1315~1345
Overall Width [b1/b2]	520 mm
Ground clearance, center of wheelbase [m2]	n/a
Performance:
Travel speed, with/ without load	4.5/5 Km/h
Drawbar pull, laden/unladen	200 N
Max. drawbar pull, laden/unladen	650 N
Gradeability, laden/unladen	3/16 %
service brake	mechanical
Drive motor rating 60 min	0.4 kW
The max allowed size battery	196/165/175 mm
Battery Volatage/Nominal Capacity K20	24/50 V/Ah
Type of driving control	DC
Steering Type	Mechanical
Sound pressure level at the driver’s ear	74 dB (A)
