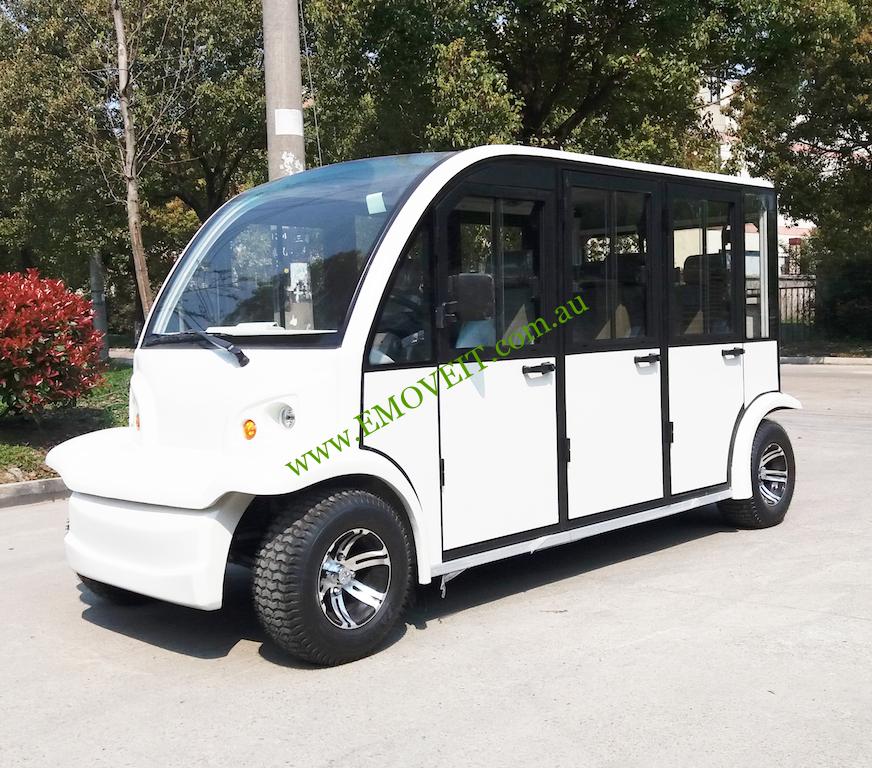

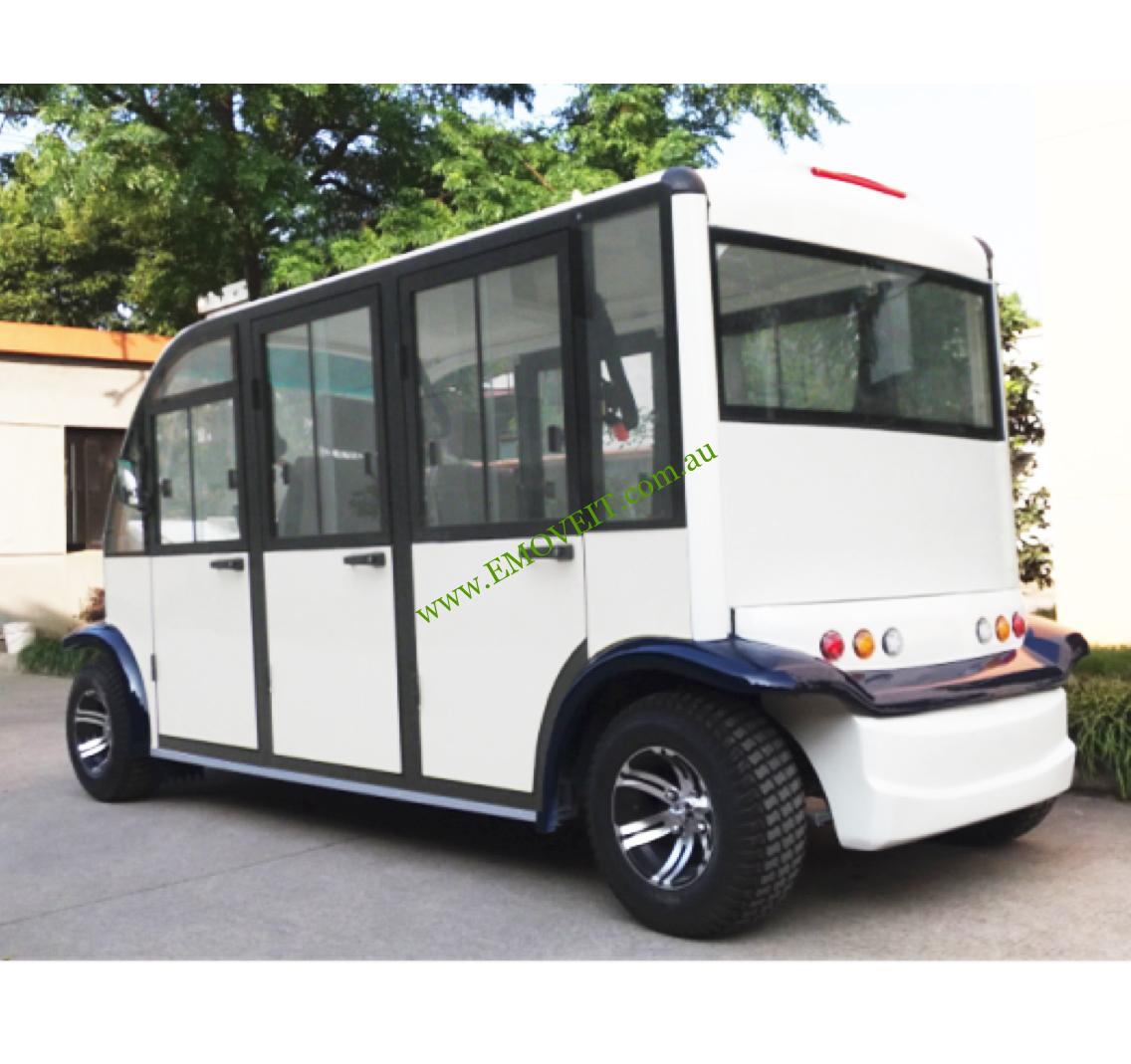

Electric Shuttle Bus with Doors, also known as sightseeing electric vehicles, belong to the category of electric vehicles used in the area and can be divided into tourist vehicles, residential RVs, electric classic cars, and small golf carts. It is an environment-friendly electric passenger vehicle that is specially designed for tourism scenic spots, parks, large-scale amusement parks, closed communities, and schools.
The electric tourist car adopts a battery-powered driving method and does not emit harmful gases that pollute the atmosphere. It can be used only by charging the battery. Most of the power plants are built far away from densely populated cities, causing less harm to humans, and the power plant is stationary. It is relatively easy to concentrate emissions and remove various harmful emissions, and related technologies have also been established.
Features:
[su_list icon=”icon: check” icon_color=”#669900″]- Passenger car cold foam sponge + high rebound PU leather fabric seat
- American original CURTIS electronic control, imported electronic control, quality assurance.
- Automotive special tempered glass.
- Off-road vacuum road tires.
| Model | AW6062KF01 | AW6062KF04 | ||
|---|---|---|---|---|
| System | 48V DC | 48V AC | ||
| Electric System | ||||
| System voltage | 48V | 48V | ||
| DC or AC | DC | AC | ||
| Motor | 5KW motor | 5KW motor | ||
| Battery | 8pcs quality lead-acid battery (210AH@5HR) | 8pcs quality lead-acid battery (210AH@5HR) | ||
| Controller | Curtis | Curtis | ||
| Technical Information | ||||
| Passenger Number | 6 | 6 | ||
| Max. braking distance at a speed of 20km/h | ≤4m | ≤4m | ||
| Max. Loading Capacity | 400kgs | 400kgs | ||
| Vehicle Weight | 800kgs | 800kgs | ||
| Overall dimensions (mm) | 3880×1480×1900mm | |||
| Other Specifications | ||||
| Brake System | 4-wheel hydraulic brake, parking brake | |||
| Front axle and suspension | Independent suspension | |||
| Rear axle and suspension | Integral rear axle, coil spring non-independent suspension, hydraulic shock absorber tube | |||
| Steering system | rack and pinion steering system | |||
| Tire | 20.8 – 8 tubeless tire, Steel wheel 6J-10 | |||
| Body | Steel chassis + fiberglass body | |||
| Floor | Non-slip floormat | |||
| Instruments on dashboard | Combination instruments including power indicator, voltage, current, distance, lighting, F/R, signal | |||
| Rear view mirror | 1pc on each side | |||
| Lights system | Headlight, turn lights, taillight, horn and reverse buzzer | |||
| Seats | High quality of artifical leather | |||
| Auto system | CD and radio, speaker | |||
| Switch assembly | Combination switch including Power kety, Light and wiper combination switch, F/R switch and reverse buzzer switch | |||
