An electric brake is always active in the absence of voltage, ensuring safety when the machine is not in use.
Upon request, Zallys M6.5 can be ATEX and IECEx certified (zones 1/21 and 2/22): the certification bodies will take care of the explosion-proof transformations after careful analysis.
Like all Zallys vehicles, M6.5 is a high quality Made in Italy product, guaranteed and CE certified in compliance with current European regulations.
-
to tow loads up to 6,000 kg ;
-
ATEX and IECEx certifications available for use in potentially dangerous and explosive environments;
-
versatile and compact;
-
pneumatic wheels for indoor and outdoor use;
-
optional electric lift ;
-
5-level travel speed adjustment;
-
wide range of standard or customizable hooks on request.
Ergonomic driving
The Zallys tillerhead was designed and created to make the operator’s use of the machine more ergonomic, guaranteeing the right comfort for prolonged use during the work shift. Its ergonomic design allows you to have everything at hand:
- ignition key;
- LED display showing the remaining battery charge and the set speed;
- button for selecting the 5 speeds;
- horn button;
- maintained action travel controls;
- anti-crushing safety button;
- two extra button slots for additional accessories.
La struttura è composta da materiali resistenti in caso di urti accidentali.
The right speed for every operation
For each level the speed of the machine increases by 20%, according to this curve:
- 1st level: Speed at 20%;
- 2nd level: Speed at 40%;
- 3rd level: Speed at 60%;
- 4th level: Speed at 80%;
- 5th level: Maximum speed;
N.B. The maximum speed of the machine is shown in the Technical Data section.
Autonomy for an entire working day
This model is equipped as standard with two 130Ah batteries, which guarantee the machine an autonomy of 8 working hours with continuous use.
The batteries are AGM sealed and therefore do not require maintenance.
High frequency external battery charger
The Zallys charger provides reliable and quality charging. Thanks to PFC (Power Factor Correction) technology, it improves battery performance during charging and prevents potentially harmful current peaks.
Furthermore, it is multi-voltage and adapts to the 110 or 220V electrical network and is equipped with “buffer” technology, essential for maintaining battery performance in the event of long periods of non-use.

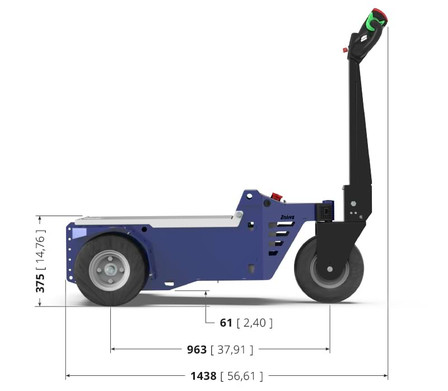

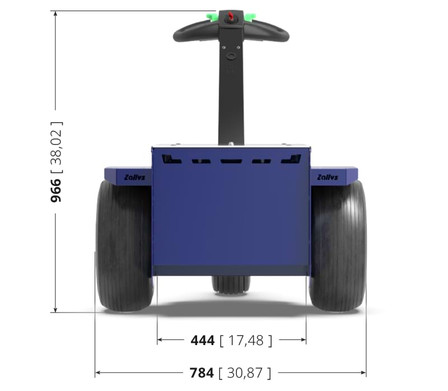

Specifications
| Model name | M6.5 |
| Certification | CE |
| Towing capacity | 6000 kg |
| Maximum speed | 4.5km/h |
| Weight (without batteries) | 94 kg |
| Length | 1,568 mm |
| Width | 748 mm |
| Height | 1,568 mm |
| Turning diameter | 1,50m |
Case history
Moving booths during painting
The Zallys M6.5 electric tow tractor is used to transport the cabins for the excavators during the painting phase. Thanks to the steering drawbar, the machine can be driven effortlessly even with very heavy and bulky loads.
Handling of heavy and bulky parts
The parts that make up the frames of large machinery are very heavy and bulky and moving them can be a critical issue in the production flow. Our customer found the solution in the Zallys M5 model, which tows loads of up to 4,000 kg with ease and precision.
Electric mover for moving bulky loads
To move special trolleys with heavy and bulky components, such as this reel, there is no better solution than the Zallys M6.5 electric mover: with its lowered structure and steering rudder it makes handling stable, light and safe.
Towing trailers with boats from the boathouse to the lake
Thanks to the innovative electric lifting system, the Zallys M6.5 industrial mover is the perfect solution for moving heavy trailers such as those for transporting boats and dinghies, and moving them quickly and effortlessly from the garage to the lake, always with zero emissions.
Electric mover for bulky and heavy loads
With the Zallys M6.5 electric mover the customer is able to move his trolleys easily and safely: thanks to the steering rudder the load is directed with extreme precision, which significantly reduces maneuvering times, speeding up movements.
Fast and efficient trolley movement
In hospitals, there are many trolleys to manage and making their movement more efficient by reducing the load on employees is a very important need. The Zallys M5 electric tug is the ideal solution, capable of towing up to 5 trolleys at a time.
Electric mover to move glass trolleys
By connecting the glass trolley to the Zallys M6.5 electric mover, it is possible to tow it safely, easily and quickly. The operation of the machine is fluid and stable and the speed is adjustable on 5 levels, to guarantee maximum safety for the most difficult manoeuvres.
Electric mover for towing agricultural machinery
The Zallys M6.5 electric mover is the ideal solution for moving agricultural machinery: designed for moving heavy wheeled loads and trailers up to 6,000 kg, thanks to the optional electric lifting system the connection is simple and safe.
Electric mover for bulky and heavy loads
With the Zallys M6.5 electric mover the customer is able to move his trolleys easily and safely: thanks to the steering rudder the load is directed with extreme precision, which significantly reduces maneuvering times, speeding up movements.
Mover with electric lifting for boat trolleys
The optional lifting system of the Zallys M6.5 electric mover is specifically designed to tow heavy wheeled loads such as boat trailers and trailers. The movement of the boats in the maintenance shed is smooth and precise thanks to the steering system.
Application gallery
