The TT‐3000P is a four wheeled ZERO emission electric drive pedestrian Tug ergonomically designed to easily move heavy duty machine, Industrial and commercial goods with safety and ease.
Custom attachments available
SPECIFICATIONS:
- Battery operated Heavy Duty Tug
- Pulling and pushing capacity up to 14 Tonne with ballast (35T achieved on rails)
- 2800-6300N draw bar pull
- AC 3000 Watt/24 Volts S2 60 Min.
- AGM batteries 4x 12V/115Ah C20
- 25 Ah integrated battery charger.
- High torque at low speed.
- Pneumatic garden tread wheels
- The Large diameter Driving and Steer wheels ensure maximum traction even on rough surfaces.
- Anti-flat tyre treatment by polyurethane filled wheels available
- Adjustable Handle Height.
- Emergency Stop Button and Flashing light.
- Slow speed switch to operate in narrow spaces
- 4 position rear Hook attachment to pull at different heights
- On-Board battery charger
- Tilting tiller with micro safety switch and automatic return to rest position
- For slippery surfaces, optional ballast can be added easily.
- Electromagnetic brake with release
- Wide range of attachments..standard and Custom built for any application
Model A
Model B

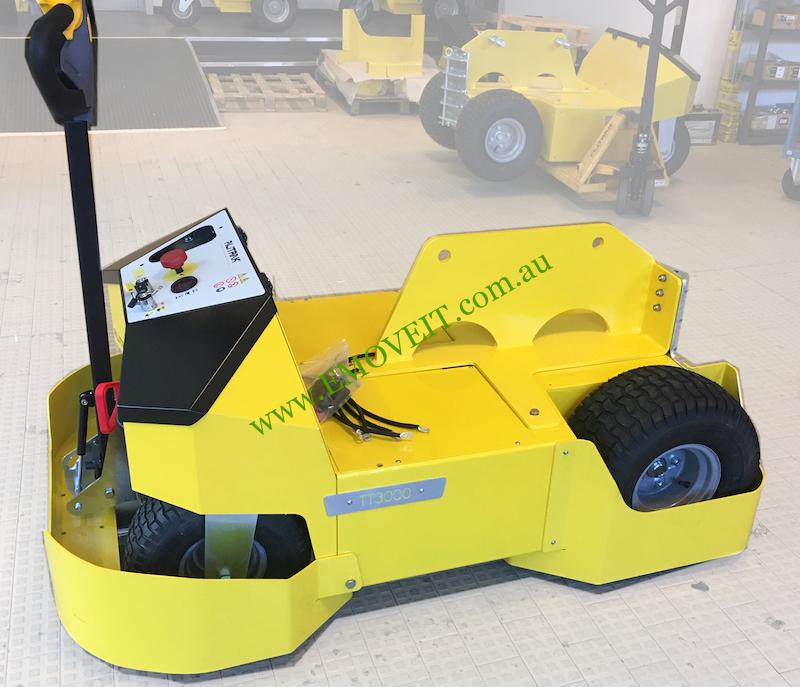

TT3000 with optional bumper bar
with optional Airport Hangar Door Attachment
Download PDF
VIDEOS
OPTIONS
Tram Coupling Attachment
Airport Hangar Door Attachment
Towing hook heights from ground
