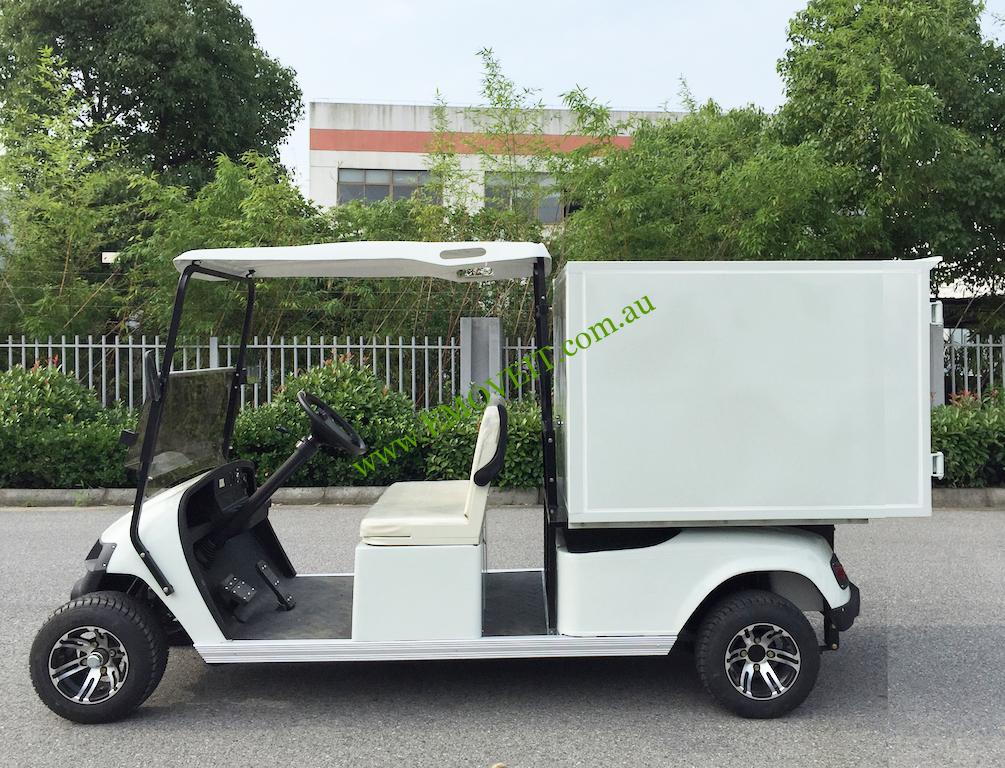

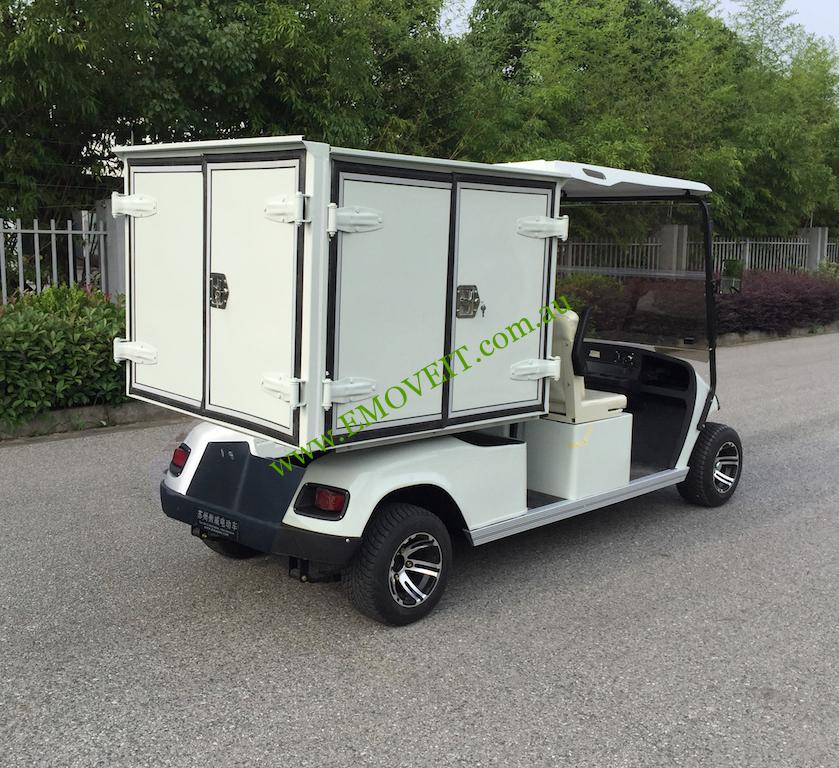

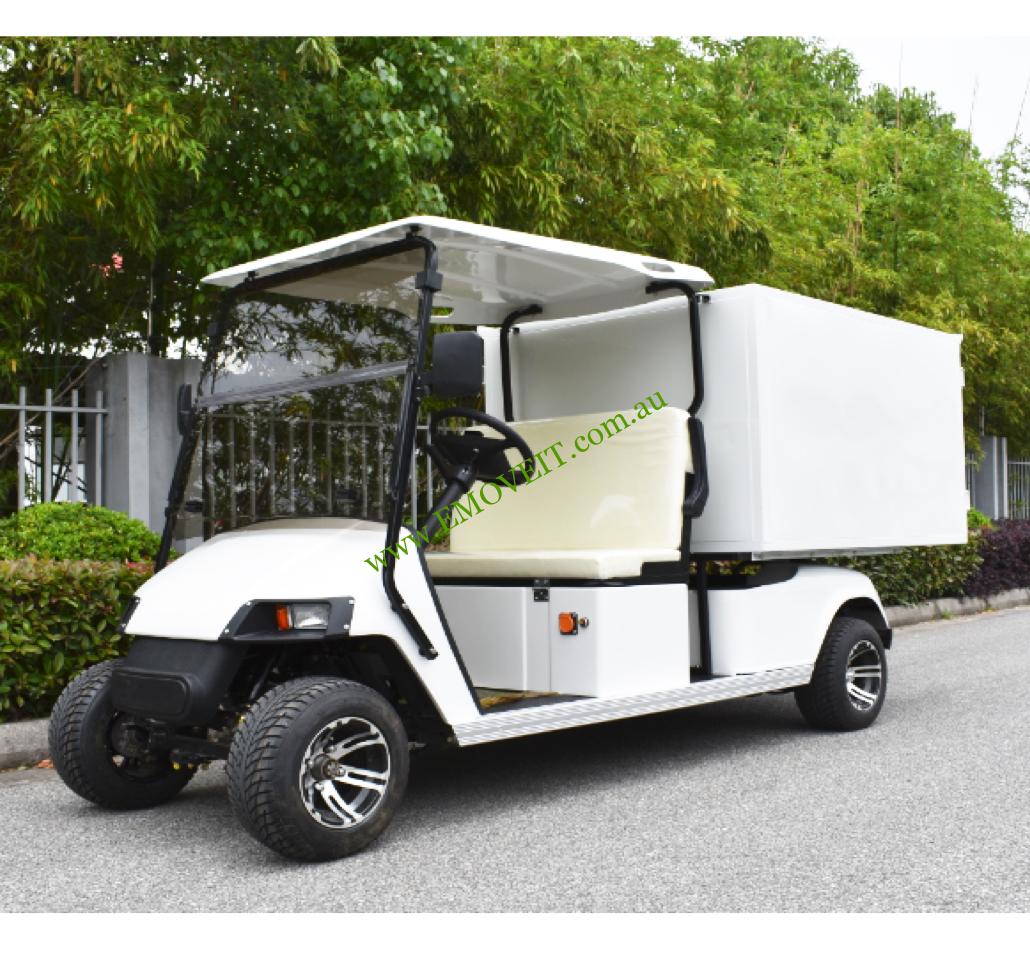

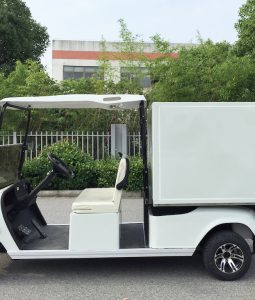

Electric golf carts are field vehicles developed specifically for golf courses. The vehicle has a low site, convenient up and down, small turning radius, flexible operation, and vacuum wide tires. The compound front suspension system has excellent shock absorption performance, smooth running, and comfortable driving.
The rear suspension adopts the spring-spring shock absorber to adopt high-resilience and high load-bearing leaf spring design. The vehicle has superior load-carrying performance, and the ride is comfortable with a small bumpy ride.
The vehicle design adopts three-dimensional simulation. According to ergonomic design, it is not fatigued to drive and ride comfortably. The control system adopts the main control system imported from the United States, which has under voltage protection and anti-freeway functions.
Standard Body Colours: Pure White, Pure Black, Champagne, Coca-cola Red, Navy Blue, Metallic Green. Custom colours is available with additional cost and lead time
- LED headlight and LED taillight.
- Top quality of rear axle in case of AC system.
- Torch brand of quality lead-acid battery.
- Powder-coated + Undercoated chassis
- Curtis controller.
|System||48V/4KW Series||48V/3KW AC system|
|Battery||8 x 6V quality lead-acid battery (210AH)||8 x 6V quality lead-acid battery (210AH)|
|Motor||4KW motor||4KW motor|
|Controller||Curtis 1204M||Toyota Controller|
|Range (loaded) based on flat road at a speed of 20km/h (km)＊||>80||>85|
|Max. speed @12.49:1 gear ratio||25||32|
|Max. speed @10.25:1 gear ratio||30||40|
|Minimum turning radius (m)||4.5||4.5|
|Max. climbing ability (loaded) @ 12.49:1 gear ratio||20%||25%|
|Max. movement after brake at speed of 20km/h||≤4m||≤4m|
|Max. loading weight||320kgs||320kgs|
|Overall dimensions (mm)||3110X1180X1890|
|Body and Frame|
|Frame||Welded steel framework to be treated in dipping (phosphate)+ electro-coating treatment|
|Body||PP plastic front body + PP plastic rear body|
|Windshield||Windshield, hinged (Optional: Laminated windshield with wiper)|
|Backrest and cushion||Rebond seat + artificial leather + plastic armrest|
|Dashboard in black plastic||forward/reverse switch, battery capacity indicator, ignition key|
|Beverage holders||4 cups drink holders|
|Glove box door (include two locks) in black plastic (OPTIONAL)||2 doors per set|
|Glove box door (include two locks) in wood finish (inside and outside) (OPTIONAL)||2 doors per set|
|Inner rear view mirror (OPTIONAL)||1 piece per cart in the middle of the windshield|
|Side rear view mirror||Two pieces per cart|
|Lighting system and horn||2 LED headlight, 2 LED taillights ( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 48V to 12V), horn.|
|12V accessory plug (OPTIONAL)||to be mounted on the dashboard|
|Solar Panel (OPTIONAL)||48V, 185W|
|Charger||Non-onboard charger, china origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A|
|Charger (OPTIONAL)||On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A|
|Steering and Suspension|
|Steering system||Single-stage rack and pinion steering system, automatic rocker compensating function|
|Brake system||Mechanical brake|
|Brake system (OPTIONAL)||4-wheel hydraulic brake + hand brake or 4-wheel hydraulic brake, front disc brake, rear drum brake|
|Accelerator||Stepless speed change|
|Suspension system||Front and rear plate spring + cylinder hydraulic shock absorber|
|Driving mode||Rear axle two stage deceleration, motor direct driving|
|Rear axle||Integrated, Gear ratio12.49:1 or Integrated, Gear ratio10.25:1|
|Wheel & Tyre||10×6 Alumimum wheel & 205/50-10 4PR Or OPTIONAL: 6J-10 steel wheel with cap & 205/50-10 4PR|
|Standard Body||Pure White, Pure Black, Champagne, Coca-cola Red, Navy Blue, Metallic Green|
