| Seat | 6 |
| L×W×H(mm) | 3700×1380×1620 |
| Wheelbase(mm) | 2165 |
| Min. Ground clearance(mm) | 160 |
| Max.speed(km/h) | 40 |
| Min.Turning radius(m) | 5.8 |
| Braking distance(m) | 5 |
| Max.climbing(%) | 20 |
| Driving Range(km) | 80 (no load in summer) |
| Motor | 4KW, 60V, AC |
| Controller | Curtis controller 300A |
| Storage battery(AH) | Quality lead-acid 60V120AH (5x12V) |
| Charging time | 6—8 hours |
| charger(A) | 60V/20A |
| Machine weight(KG) | 800 |
| Body | PP,PC,ABS injection molding cover |
| Body structure | integral frame structure |
| Paint | electrophoresis framework,baking varnish of body |
| Glass | front laminated glass, stalinite of roof and rear bumper |
| Headlight | Combined LED(turning,position,braking,lighting) |
| Front suspension | McPerson indepent suspesion |
| Rear suspension | integral shock damping suspension |
| Brake | Disk-type hydraulic brake |
| Wheel | Aluminm-alloy rim |
| Tire | 145/70R12, meridian rail type |
| Drive mode | RWD |
| Radio | Radio(compatible USB/SD card/clock) |
| Aircon | Warming blower,natural wind |
| Seat belt | Drive/copilot safety belt |
| Seat | high-elastic imitation leather |
| Others | rear storage box,two sides door storage box |
| Quantity per container | 3pcs in 1×40’GP |

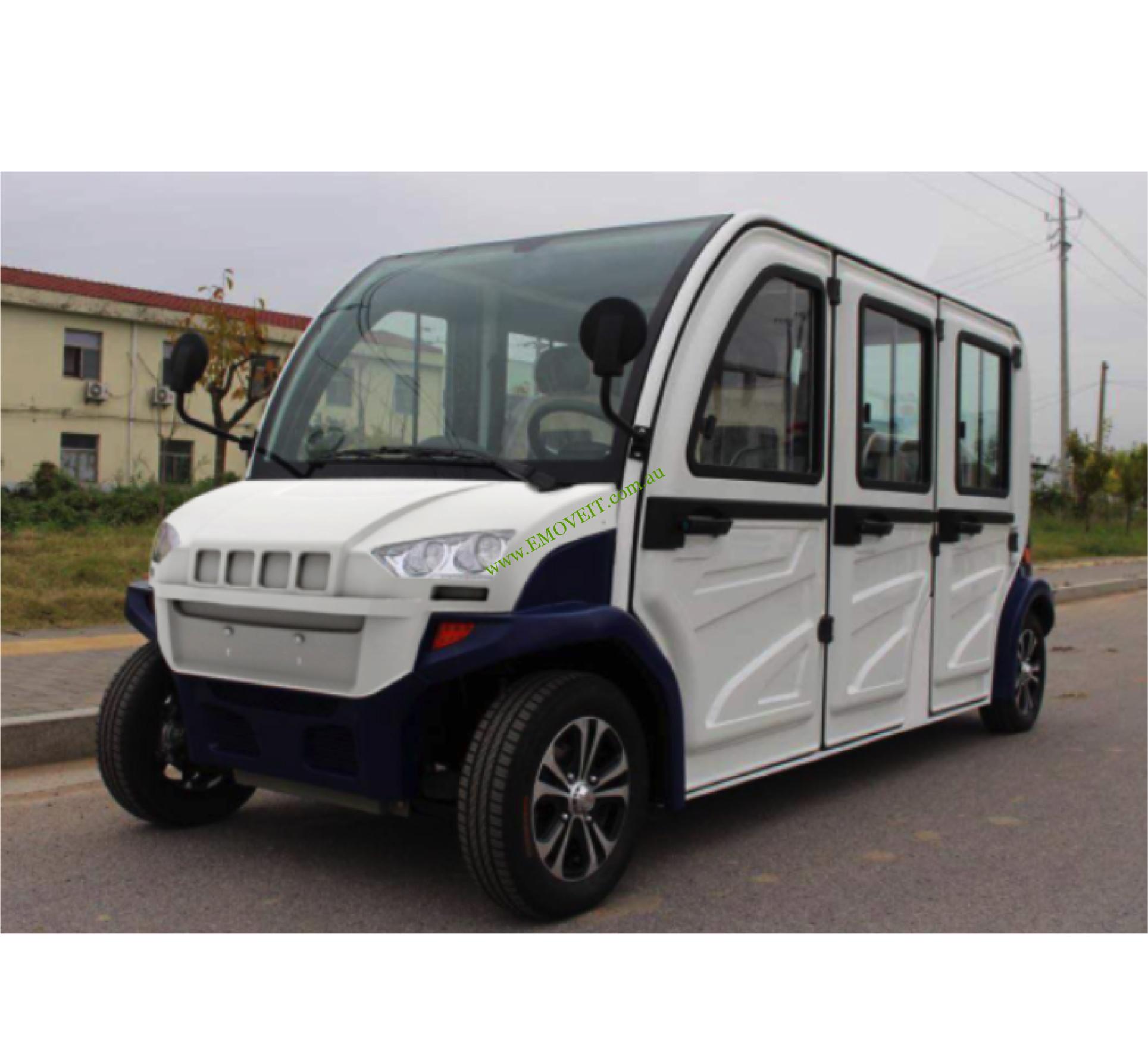

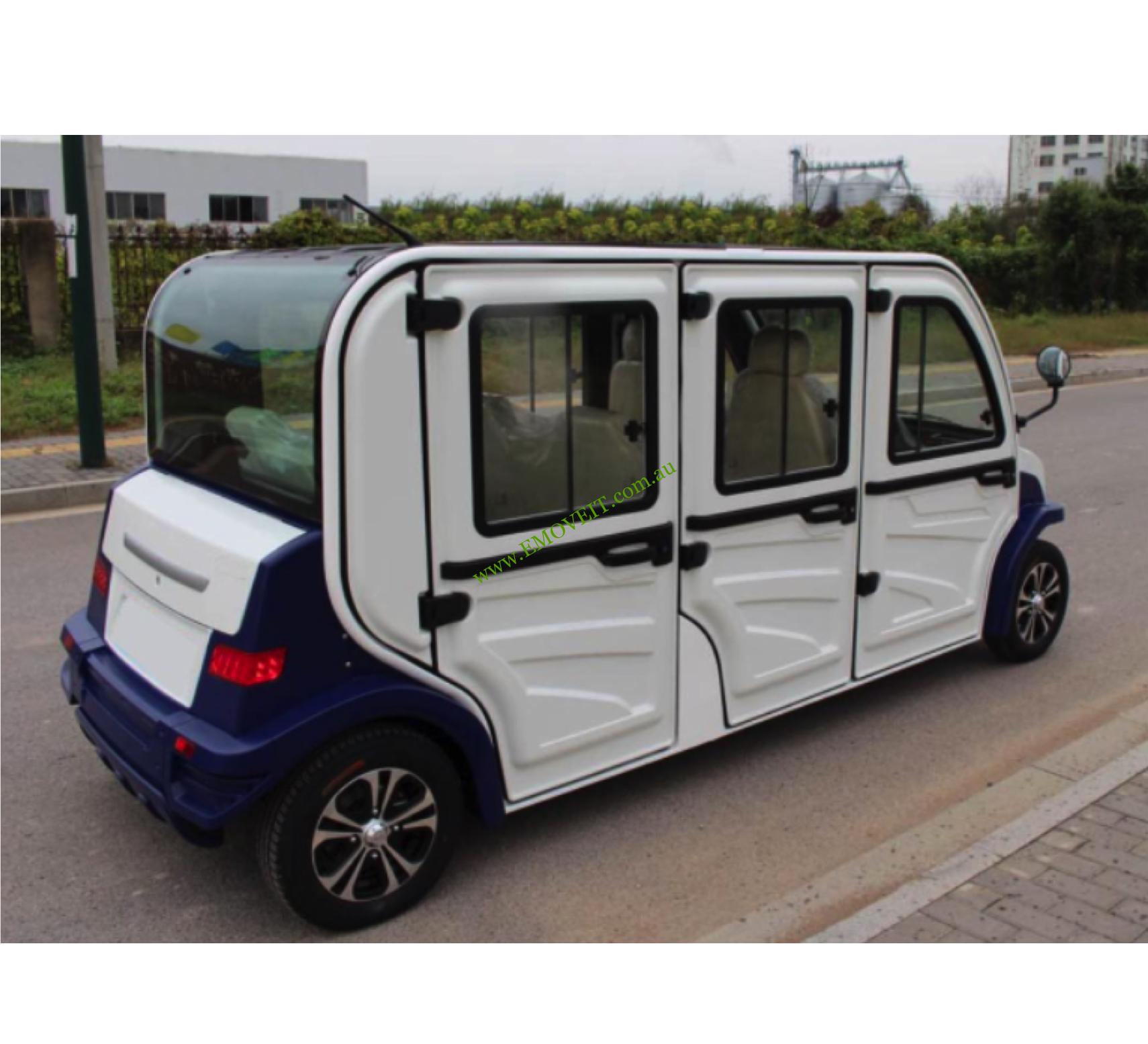

AW Series Electric Shuttle Bus 6 Seats
| Capacity | 5 Passengers |
|---|---|
| Motor | 60V / 4KW AC |
| Seat/s | 6 |
[su_table]
[/su_table]
| Capacity | 5 Passengers |
|---|---|
| Motor | 60V / 4KW AC |
| Seat/s | 6 |
