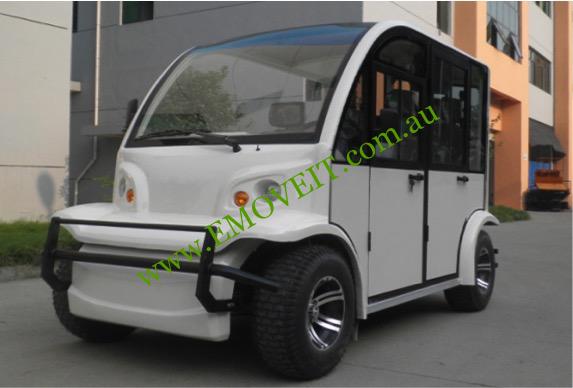

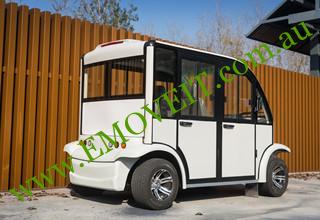

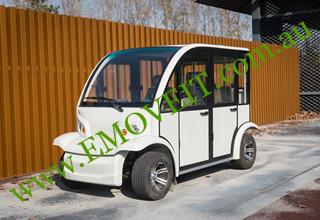

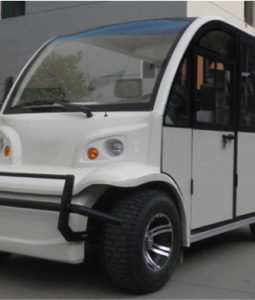

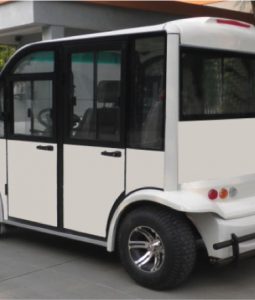

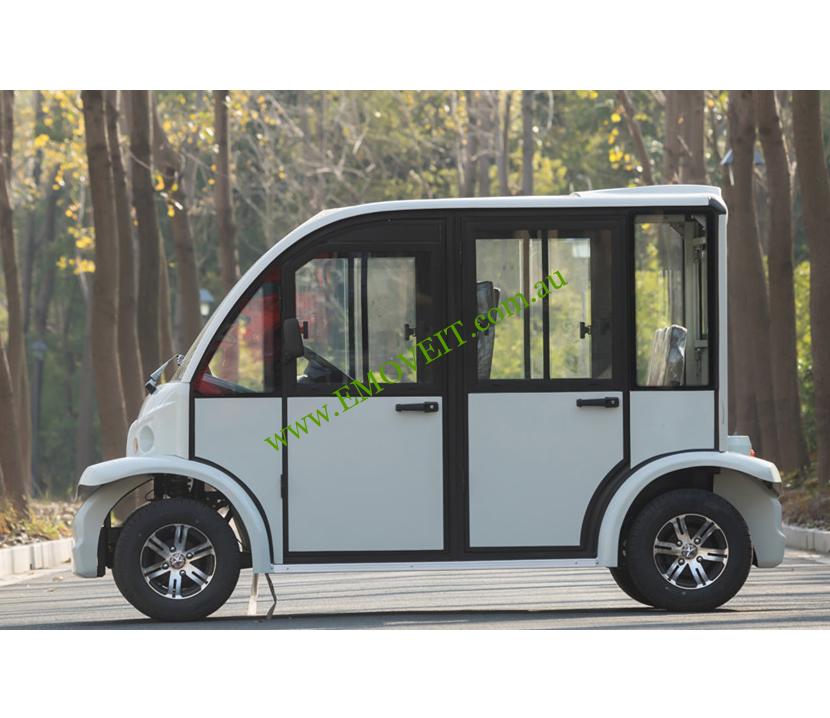

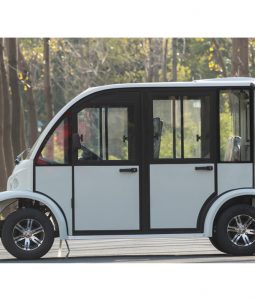

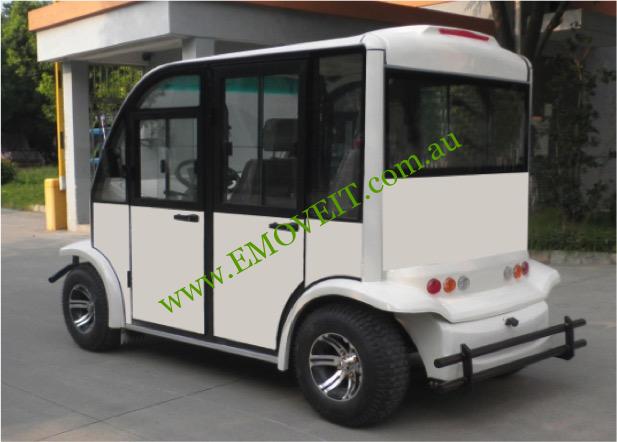

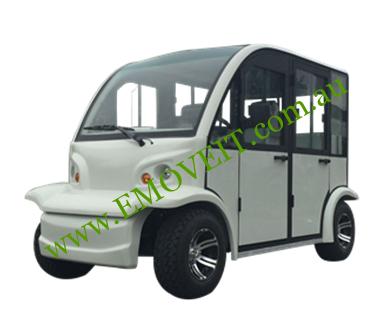

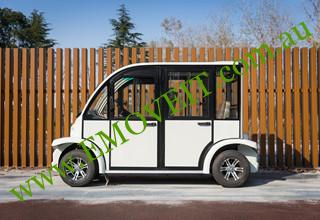

Electric Shuttle Bus with Door, belong to the category of electric vehicles used in the area and can be divided into tourist vehicles, residential RVs, electric classic cars, and small golf carts. It is an environment-friendly electric passenger vehicle that is specially designed for tourism scenic spots, parks, large-scale amusement parks, closed communities, and schools.
The electric tourist car adopts a battery-powered driving method and does not emit harmful gases that pollute the atmosphere. It can be used only by charging the battery. Most of the power plants are built far away from densely populated cities, causing less harm to humans, and the power plant is stationary. It is relatively easy to concentrate emissions and remove various harmful emissions, and related technologies have also been established.
Features:
- Passenger car cold foam sponge + high rebound PU leather fabric seat
- American original CURTIS electronic control, imported electronic control, quality assurance.
- Automotive special tempered glass.
- Off-road vacuum road tires.
- Optional: Roof Mounted 3 KW DC Air Condition, 4 x 6V batteries and one charger
| Model | AW6042KF | AW6042KF01 | AW6042KF03 | AW6042KF04 |
|---|---|---|---|---|
| System | 48V/4KW Series | 48V/4KW Series | 48V/4KW Sepex | 48V/5KW AC system |
| Electric System | ||||
| System voltage | 48V | 48V | 48V | 48V |
| DC or AC | DC | DC | DC | AC |
| Motor | 3.8KW motor | 3.8KW motor | 3.8KW motor | 5KW motor |
| Battery | 8pcs Chinese battery (210Ah) | 8pcs T105(185Ah) | 8pcs T105(185Ah) | 8pcs T105(185Ah) |
| Controller | Curtis | Curtis | Curtis | Curtis |
| Technical Information | ||||
| Passenger Number | 4 | 4 | 4 | 4 |
| Max. Speed | 25km/h | 25km/h | 30km/h | 35km/h |
| Range per charging (fully-loaded vehicle moving on flat-level road at a fixed speed of 20km/h) | >70km | >70km | >70km | >80km |
| Minimum turning radius (m) | 4 | ≤4m | ≤4m | 4 |
| Max. climbing ability | 20% | 20% | 20% | 20% |
| Max. braking distance at a speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. Loading Capacity | 400kgs | 400kgs | 400kgs | 400kgs |
| Vehicle Weight | 700kgs | 700kgs | 700kgs | 700kgs |
| Overall dimensions (mm) | 3090×1490×1950mm | |||
| Other Specifications | ||||
| Brake System | 4-wheel hydraulic brake, parking brake | |||
| Front axle and suspension | Independent suspension | |||
| Rear axle and suspension | Integral rear axle, coil spring non-independent suspension, hydraulic shock absorber tube | |||
| Steering system | rack and pinion steering system | |||
| Tire | 20.8 – 8 tubeless tire, Steel wheel 6J-10 | |||
| Body | Steel chassis + fiberglass body | |||
| Floor | Non-slip floormat | |||
| Instruments on dashboard | Combination instruments including power indicator, voltage, current, distance, lighting, F/R, signal | |||
| Rear view mirror | 1pc on each side | |||
| Lights system | Headlight, turn lights, taillight, horn and reverse buzzer | |||
| Seats | High quality of artifical leather | |||
| If 2-point seat belt (OPTIONS) | 1pc per person | |||
| Auto system | CD and radio, speaker | |||
| Switch assembly | Combination switch including Power kety, Light and wiper combination switch, F/R switch and reverse buzzer switch | |||
| Wheel and tire | Steel wheel and tire 155RC12 | |||
| Options | Aluminum wheel, Steel Bumper Bar | |||
| Options | Roof Mounted 3 KW DC Air Condition, 4 x 6V batteries and one charger | |||
