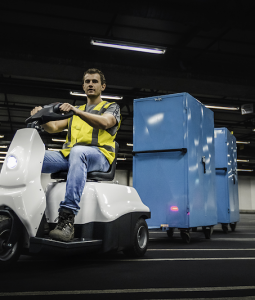

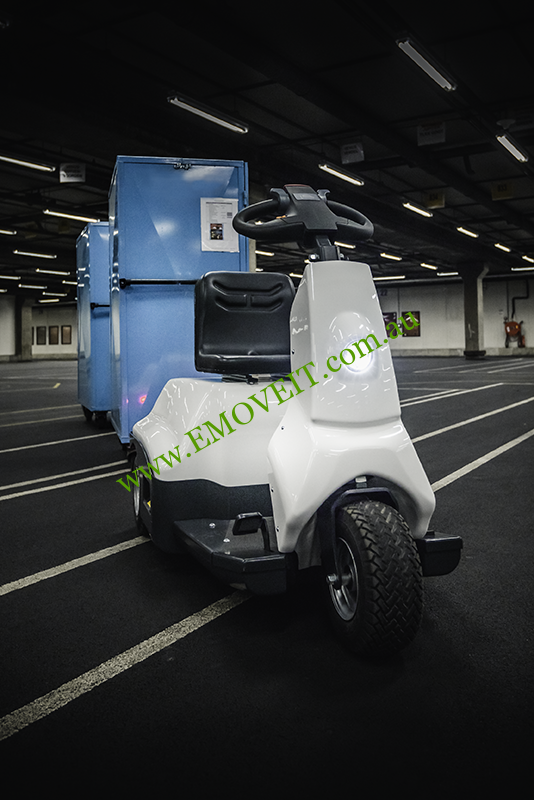

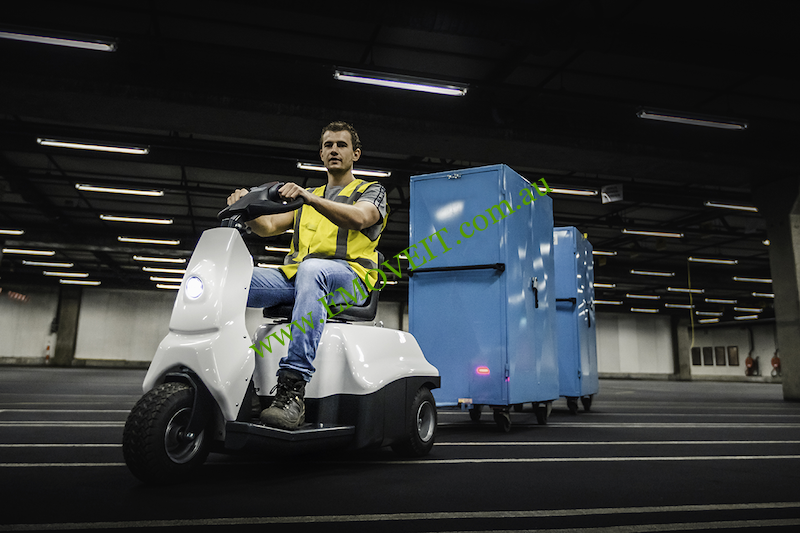

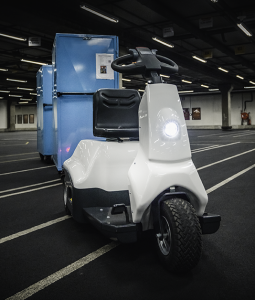

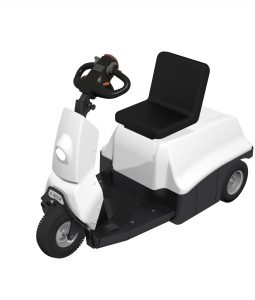

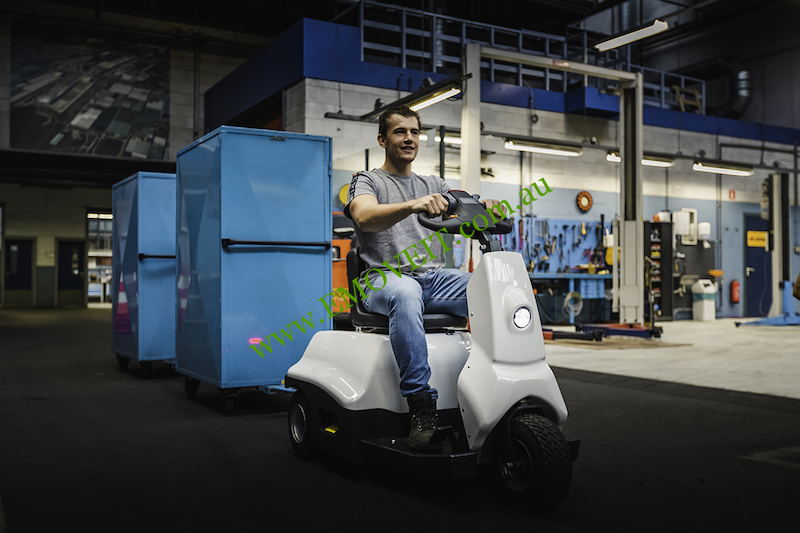

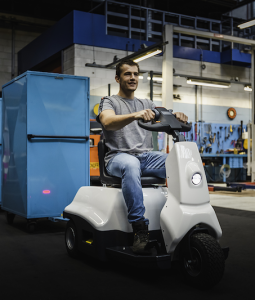

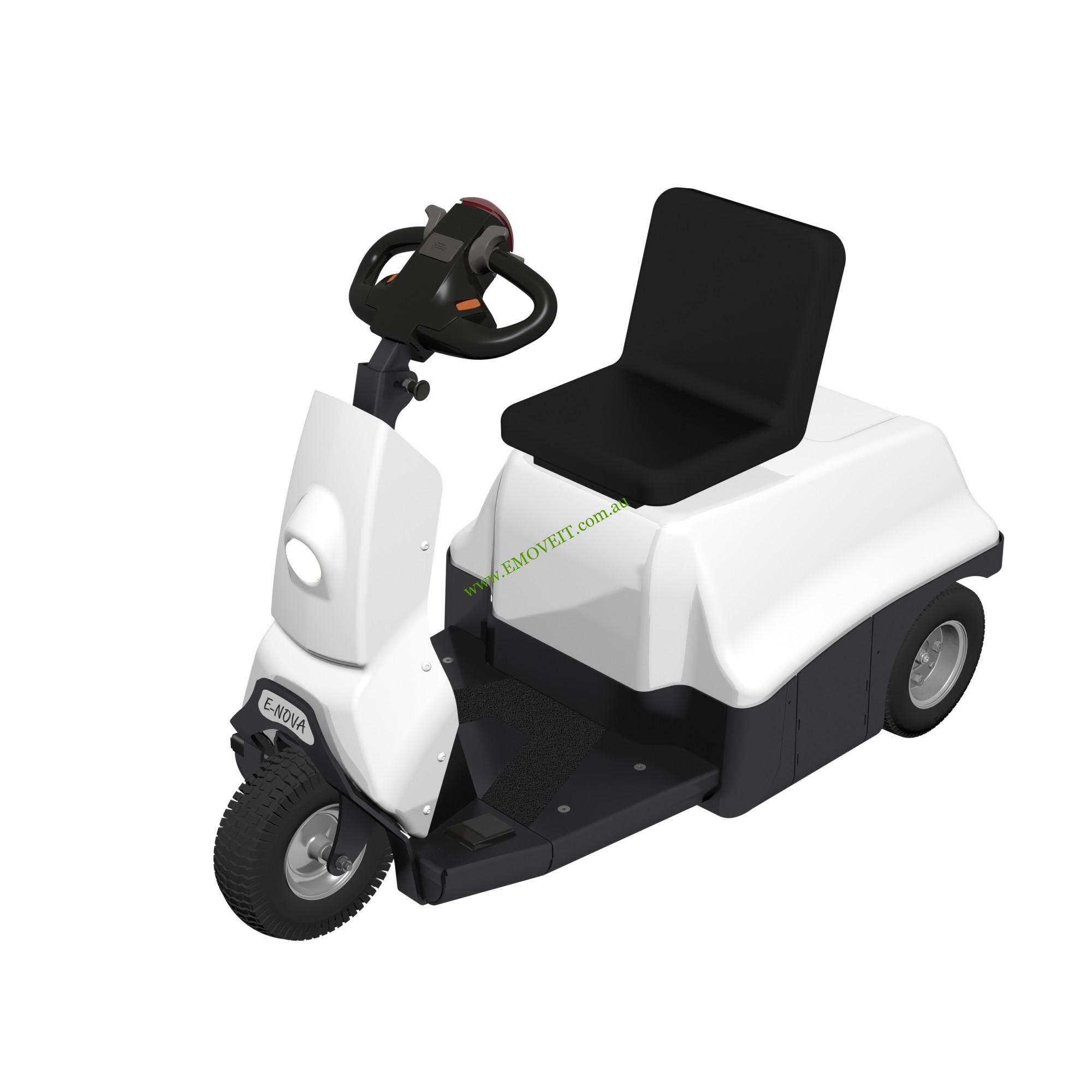

- The XL-T1500N is a new line of electric tow vehicle which, due to its modern design and powerful drive, is very suitable for facility services or public places such as airports, stations and medical centers.
- The XL-T1500N is supplied with a comfortable seat which can be adjusted forward or back. The steering can also be adjusted in three different angles so the optimal driving position can easily be set.
- The XL-T1500N comes with an easy to use tiller head which can be operated by anyone after simple instructions.
- The speed of the electric vehicle can be set to two different maximums with a button on the tiller head.
- The XL-T1500N has a maximum speed of 12 km per hour forwards for use in environments with a clear overview.
- On the slow Turtle speed, it will be driving with a maximum speed of 7 km per hour to drive safely in environments with an unclear view and a lot of people.
- The maximum speed of the two buttons can, on request, be limited at the factory by adjusting the software.
- The tiller head is also supplied with an emergency stop button and a Warning Horn
- The frame of the XL-T1500N is made of steel with a sustainable powder coat finish and functions as robust protection for the vital components
- The body shell is formed of ABS with a top layer of PMMA to protect against weather and chemical compounds.

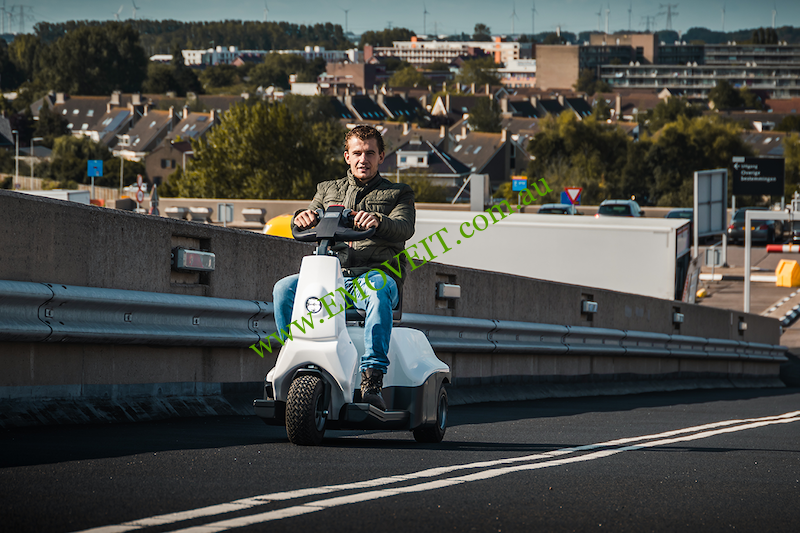

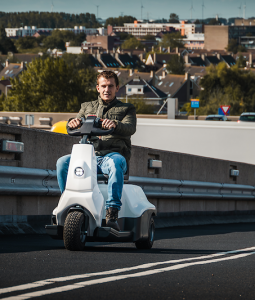

- This makes the XL-T1500N together with the large diameter Pneumatic wheels, suitable for inside and outside driving.
- We can also provide the Shell with your own company logo and colors to make the XL-T1500 perfectly suitable for your company image.
- For more information about this, please contact our customer care.
- Two different types of operator seat is available… High back or Low back
- By default it will be delivered with a high back which allows ample storage under the chair and shell

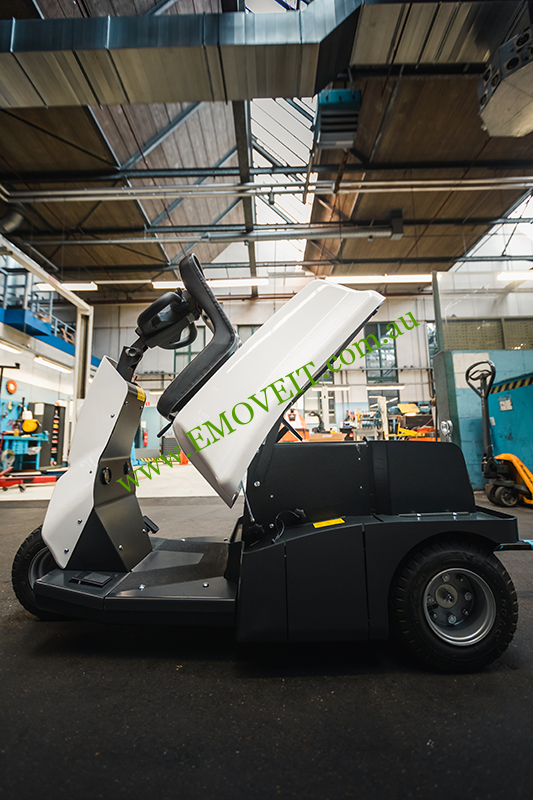

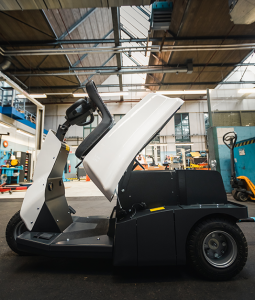

- The storage can be accessed by pulling a handle at the side of the electric vehicle and lifting the complete shell including chair.
- The space has a size of 60 x 35cm and can be used to store tools etc’.

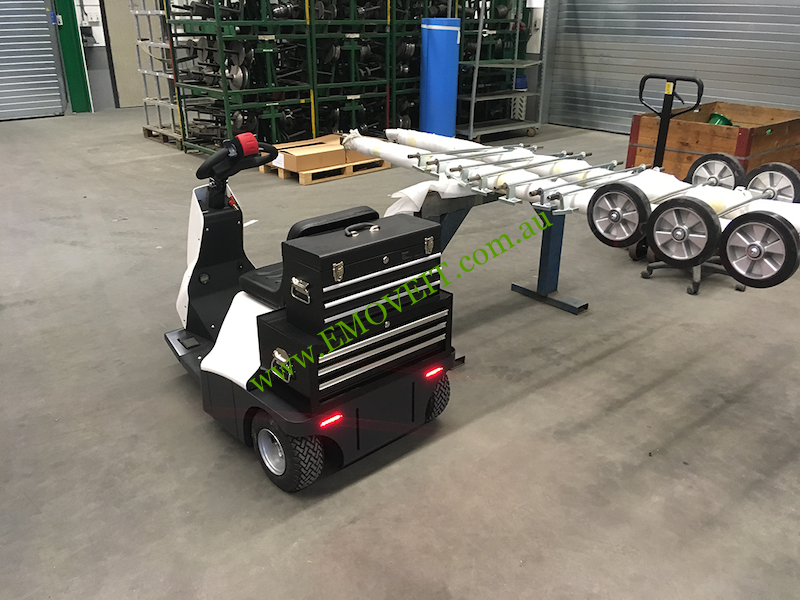

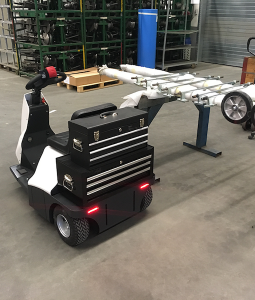

- On request, we can deliver the XL-T1500N with a lower back to have space for accessories such as a toolbox or crate at the back of the electric vehicle.
- The storage space under the chair can still be used with this option but will have the size of 35 x 35cm.
- The XL-T1500N is standard including two gel, maintenance free batteries. This can be changed to one lithium-ion battery on request.
- The batteries are easy to access and to detach from the electric vehicle.
- This will give you the possibility to switch the batteries and keep the vehicle operational for 24hrs a day without the need of charging.
- An additional, remote charger would then be required for this type of 24/7 operation.
- The standard battery charger is integrated into the vehicle and has a cable of 6 meters long.

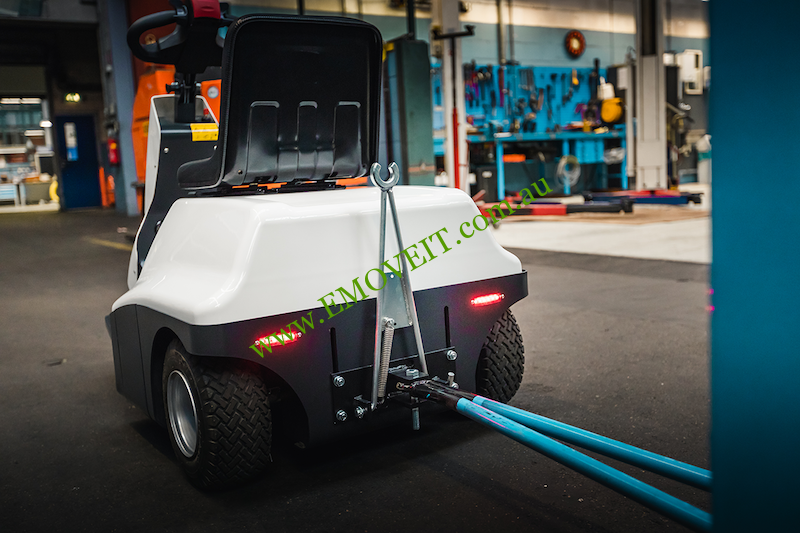

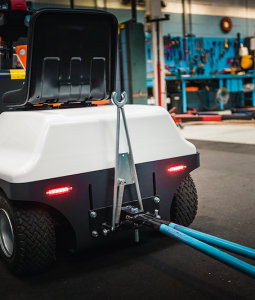

- The rear of the XL-T1500N can be fitted with a coupler such as a hook or a towing ball. A complete list of our couplers can be requested.
| Drive | AC Transaxle Asynchronous |
| Power | 1500 Watt AC Drive |
| Type battery | Standard Gel or Optional lithium |
| Battery voltage | 24V (2x12V or 1x24V) |
| Battery capacity | 130Ah/20 – 110Ah/C5 |
| Type charger | Integrated charger |
| Length of charger cable | 6 meter |
| Compatibility charger | 110/230V with type B/Type F plug |
| Controller | Programmable controller 200A |
| Material frame | Powder coated steel |
| Material caps | ABS with a PMMA top layer |
| Weight (inc batteries) | 325Kg |
| Nominal torque | 1080N |
| Tow capacity | 2500Kg (According to VDI 2198) |
| Maximal speed forwards (haze) | 12Km per hour |
| Maximal speed forwards (turtle) | 7Km per hour |
| Maximal speed backwards | 7Km per hour |
| Acceleration to maximal speed | 2,5 seconds |
| Turning circle | 1,8 meter |
| Extra connector | 12V USB |
| Maximal capacity connector | 20A |
| Front light | 12V LED |
| Power front light | 150 Lumens |
